Product

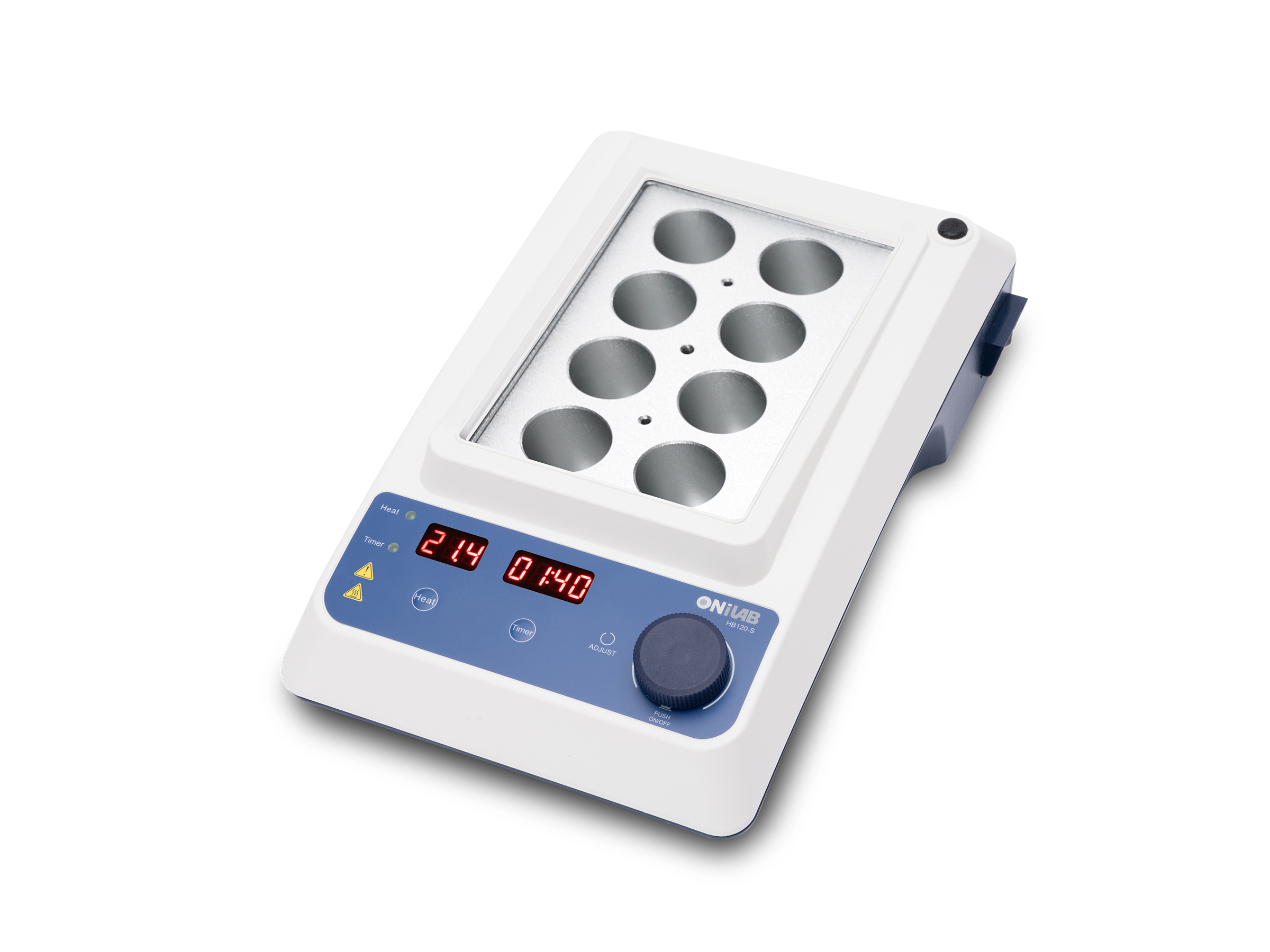

HB120-S

/Dry Bath/

Key Features

•   A wide range of temperature control up to 120°C
•   Timer function support is available
•   Various types of optional blocks are available
•   Overheating protection
•   Lid for protection and heat preservation

Parameter

/Dry Bath/

Specifications	HB120-S
Functions	Heating
Temperature range	Room temp.-120°C
Temperature control accuracy[at 37℃]	± 0.5°C
Temperature uniformity	± 0.5°C
Max. heating rate	5.5°C/min
Timer	1min-99h59min
Screen	LED
Overheating protection	140°C
Adapter block material	aluminum
Voltage, Frequency	100-120V/220-240V,50Hz/60Hz
Power	160W
Dimension [D×W×H]	175 x 290 x 85mm
Weight	3kg

Number and accessory

/Dry Bath/

Accessories of Dry Bath HB120-S
Cat. No.	Descriptions
18900218	Heating block, used for 0.2mL tubes, 54 holes
18900219	Heating block, used for 0.5mL tubes, 40 holes
18900253	Heating block, used for 1.5mL tubes, 40 holes
18900220	Heating block, used for 2mL tubes, 40 holes
18900221	Heating block, used for 5/15mL tubes, 28 holes
18900222	Heating block, used for 50mL tubes, 8 holes
18900223	Heating block, used for 96/384 microplate
18900224	Heating block, used for 0.2mL, 0.5mL and 1.5/2mL tubes , 18 holes each volume
Accessories of Dry Bath HB120-S
Cat. No.	Descriptions
18900274	Heating block, used for 0.2mL tubes, 54 holes (thin)
18900275	Heating block, used for 0.5mL tubes, 40 holes (thin)
18900276	Heating block, used for 1.5mL tubes, 40 holes (thin)
18900277	Heating block, used for 2mL tubes, 40 holes (thin)
18900279	Heating block, used for 96/384 microplate (thin)
18900278	Heating block, used for 0.2mL, 0.5mL and 1.5/2mL tubes , 18 holes each volume (thin)
