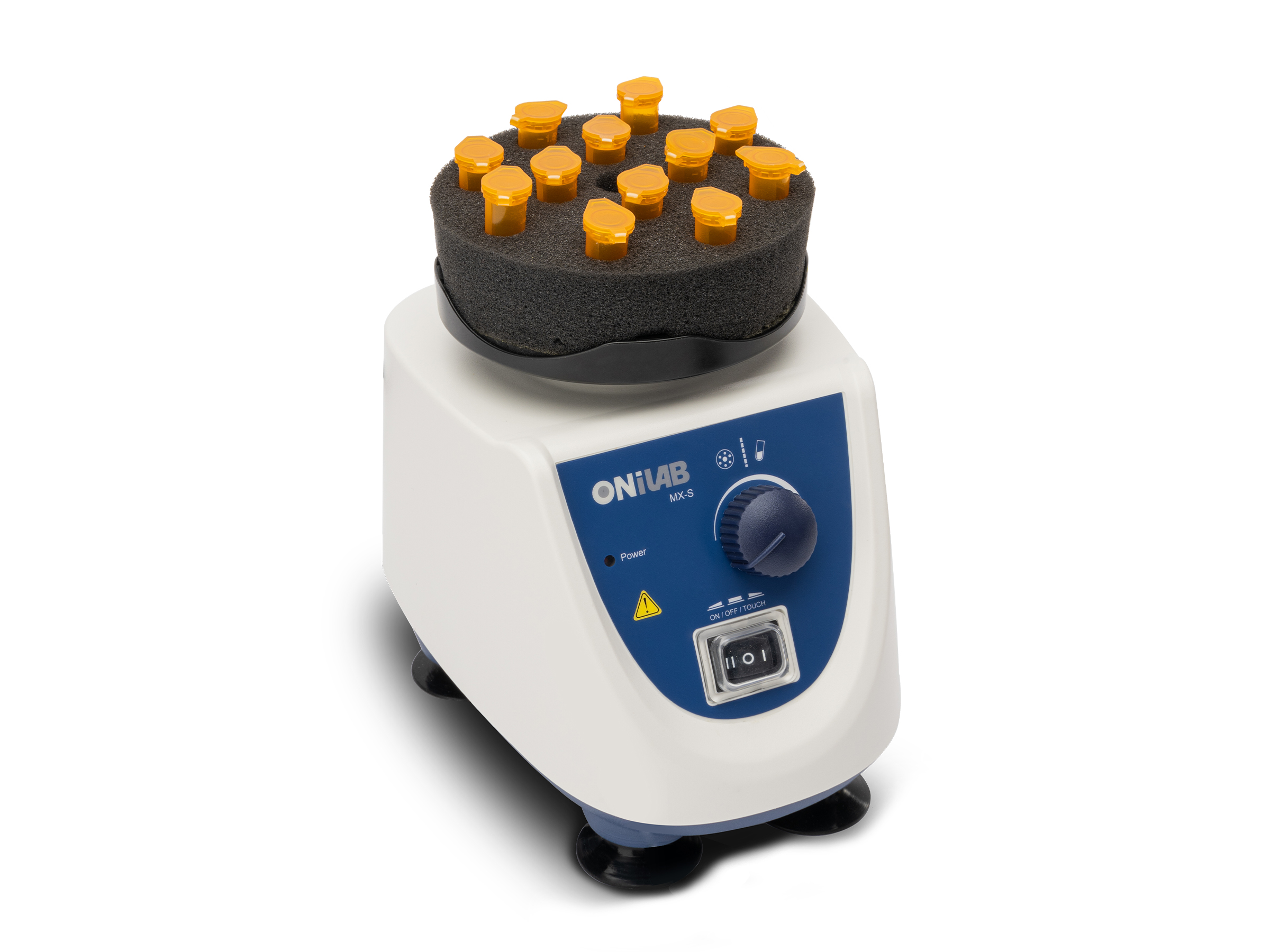

MX-S
/Vortex Mixers/
Key Features
- Touch operation or continuous mode
- Variable speed control from 0 to 2500rpm
- Used for various mixing applications with optional adapters
- Specially designed vacuum suction feet for body stablility
- Robust aluminum-cast construction
Parameter
/Vortex Mixers/
| Specifications |
MX-S (Adjustable speed) |
| Voltage | 110-120V/220-230V,50/60Hz |
| Power | 60W |
| Mixing motion | Orbital |
| Orbital diameter | 4mm |
| Motor type | Shaded pole motor |
| Motor rating input | 58W |
| Motor rating output | 10W |
| Speed range | 0-2500rpm |
| Speed display | Scale |
| Run type | Touch operation/Continuous |
| Dimension[W×H×D] | 127×130×160mm |
| Weight | 2.0kg |
| Permissible ambient temperature | 5-40 °C |
| Permissible relative humidity | 80%RH |
| Protection class | IP21 |
Number and accessory
/Vortex Mixers/
| Cat. No. | P/N | Descriptions | Power supply |
| 8051102000 | MX-S | Vortex Mixer (adjustable speed) | Cn plug, 220/50Hz |
| Vortex Mixer (adjustable speed) | Cn plug, 220/60Hz | ||
| Vortex Mixer (adjustable speed) | USA pug, 110/50Hz | ||
| Vortex Mixer (adjustable speed) | USA pug, 110/60Hz | ||
| Vortex Mixer (adjustable speed) | Euro plug, 220/50Hz | ||
| Vortex Mixer (adjustable speed) | Euro plug, 220/60Hz | ||
| Vortex Mixer (adjustable speed) | UK plug, 220/50Hz | ||
| Vortex Mixer (adjustable speed) | UK plug, 220/60Hz |
| Accessories of Vortex Mixer | |||
| Cat. No. | P/N | Descriptions | |
| 18900034 | VT1.1 | Standard top cup，for <Ø30mm tubes and small vessels | |
| 18900044 | VT1.2 | Tube holding rod, used with VTI.3.1 to VTI.3.5 | |
| 18900035 | VT1.3 | Universal top plate，100mm plate attachment , free of Rubber vacuum suction foot (18900158, 4pcs) | |
| 18900020 | VT1.3.1 | Tube adapter, for 48 holes test tubes, Ø6mm, used with VT1.3/ VT1.2/PS1.1 | |
| 18900021 | VT1.3.2 | Tube adapter, for 15 holes test tubes, Ø10mm, used with VT1.3/ VT1.2/PS1.1 | |
| 18900022 | VT1.3.3 | Tube adapter, for 12 holes test tubes, Ø12mm , used with VT1.3/ VT1.2/PS1.1 | |
| 18900023 | VT1.3.4 | Tube adapter, for 8 holes test tubes, Ø16mm, used with VT1.3/ VT1.2/PS1.1 | |
| 18900024 | VT1.3.5 | Tube adapter, for 8 holes test tubes, Ø20mm, used with VT1.3/ VT1.2/PS1.1 | |
| 18900043 | VT1.3.6 | Platform pad, for <Ø99mm tubes and small vessels | |
| 18900158 | VT1.3.7 | Rubber vacuum suction foot with screw, 1pc | |
