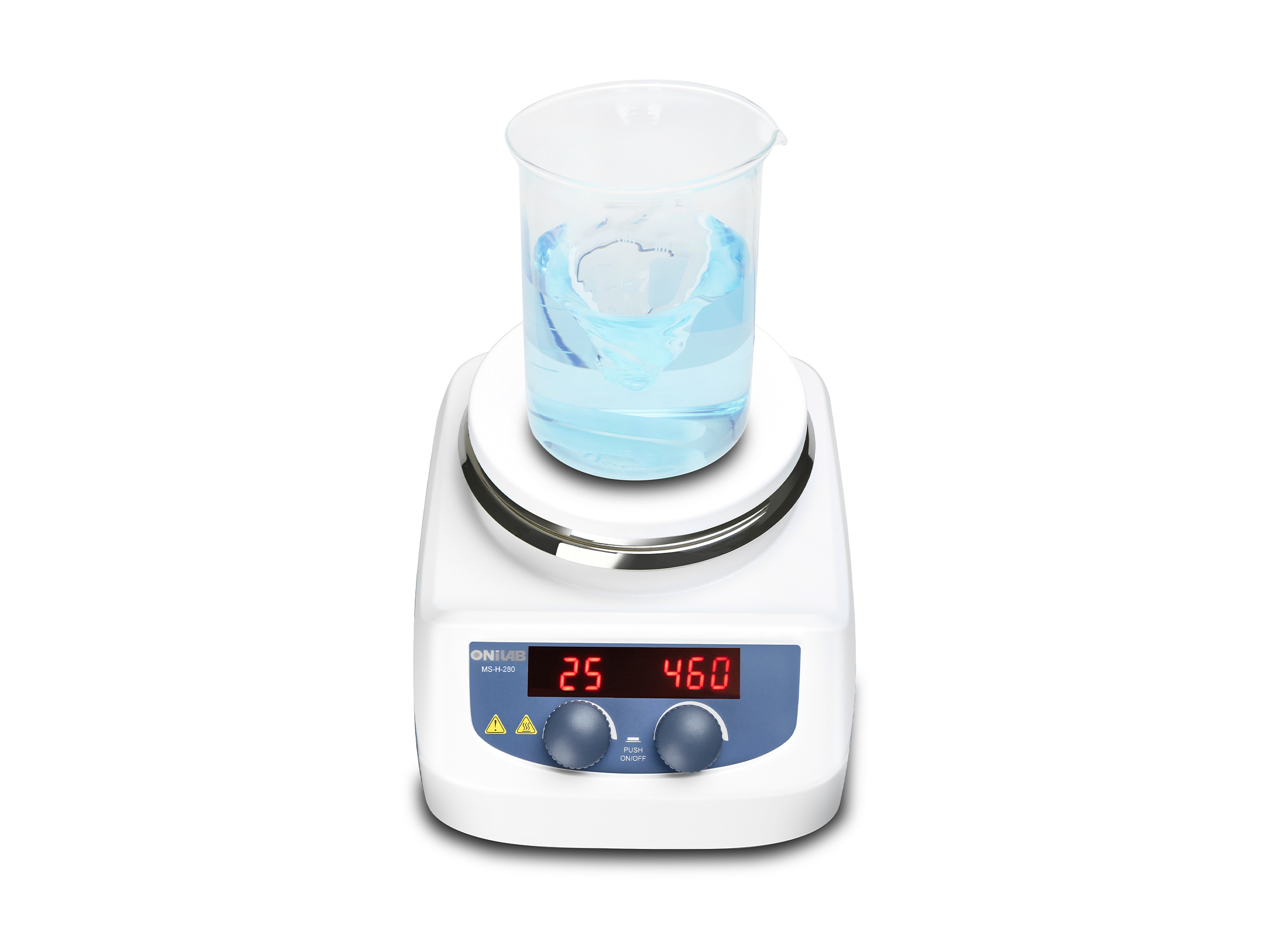

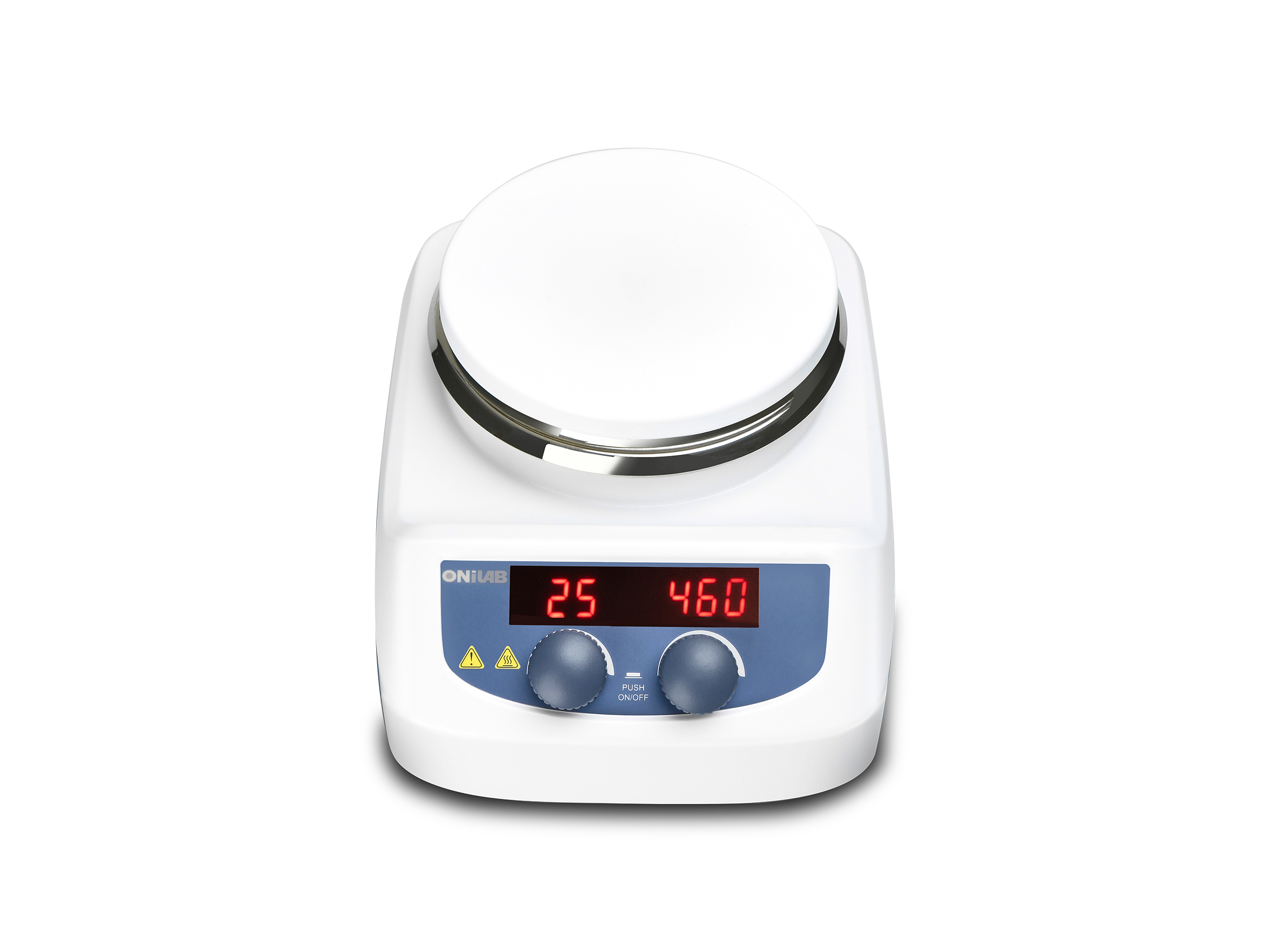

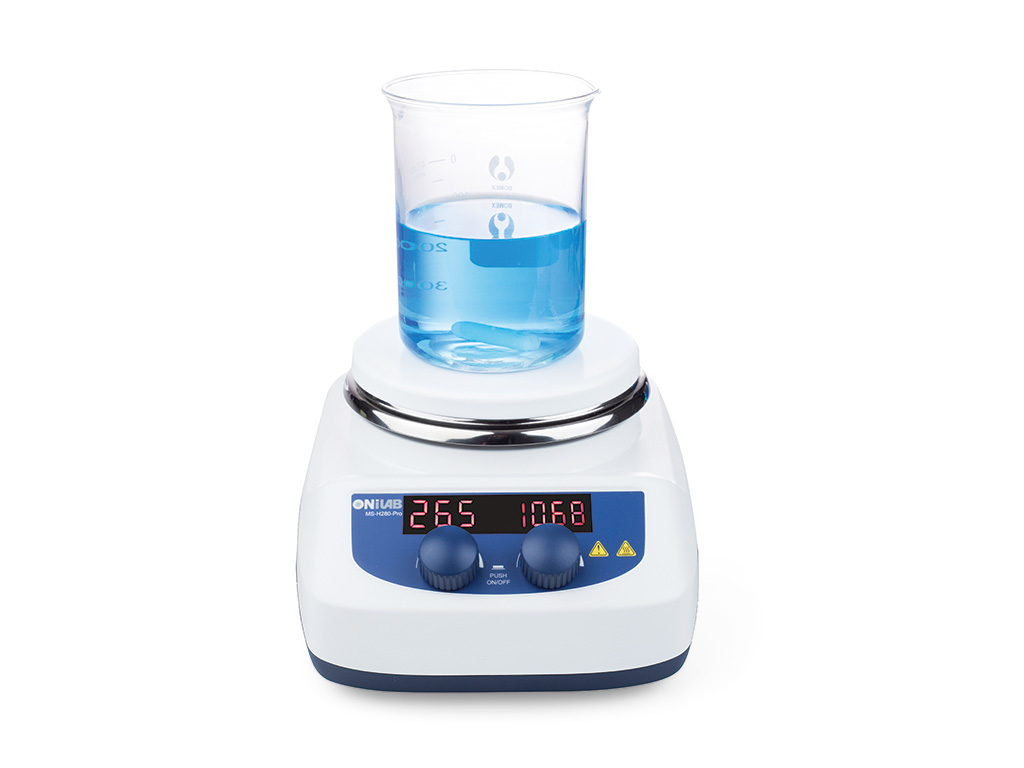

MS-H280-Pro
/Magnetic Hotplate Stirrers/
Key Features

•   Digital temperature control with max. temperature up to 280°C
•   Digital speed control with max. speed up to 1500rpm
•  Stainless steel work plate with ceramic coating provides good chemical resistant performance
•   External  temperature  control  is  possible  by  connecting  the temperature sensor(PT1000) with an accuracy at ±0.5°C
•   LED display shows temperature and speed
•   The “HOT” warning will flash when the work plate temperature is above 50°C even if the hotplate is turned off
Parameter
/Magnetic Hotplate Stirrers/
Specifications MS-H280-Pro
Work plate Dimension φ135mm(5 inch)
Work plate material stainless steel cover  with ceramic
Motor type Brushless DC motor
Motor rating input 5W
Motor rating output 3W
Power 515W
Heating output 500W
Voltage 100-120/200-240V  50/60Hz
Stirring positions 1
Max. stirring quantity[H2O] 3L
Max. magnetic bar[length] 50mm
Speed range 200-1500rpm
Speed display LCD
Temperature display LCD
Speed display resolution ±1rpm
Heating temperature range Room temp.-280, increment 1°C
Control accuracy of work plate ±1°C(<100°C)     ±1%(>100°C)
Over  heat Protection 320°C
Temperature  display accuracy ±1°C
External  temperature sensor PT1000 (accuracy ±0.5°C)
"Hot" warning 50°C
Protection class IP21
Dimension [W x D x H] 150×260×80mm
Weight 1.8kg
Permissible ambient temperature and humidity
 		 5-40℃ 80%RH

Number and accessory
/Magnetic Hotplate Stirrers/
Cat. No. P/N Descriptions Power supply
8050101212 MS-H280-Pro Double LED Digital Hotplate Magnetic Stirrer，stainless steel with ceramic coated hotplate，heating temperature up to 280°C USA plug,100V-120V/50Hz/60Hz
Cn plug, 200V-240V/50Hz/60Hz
Euro plug, 200V-240V/50Hz/60Hz
UK plug, 200V-240V/50Hz/60Hz


Cat. No. P/N Descriptions
18900016 PT1000-A Temperature sensor for digital hotplate models,length of 230mm, used for MS-H280-Pro, MS-H-Pro +,MS-H-ProT, MS7-H550-Pro, MS7-H550-S
18900136 PT1000-B Temperature sensor with glass coated, length of 230mm, used for digital hotplate models, used for MS-H-Pro +, MS-H-ProT,MS7-H550-Pro, MS7-H550-S, MS-H280-Pro
18900084 PT1000-C Temperature sensor, length of 100mm, used for digital hotplate models, used for MS-H-Pro +,MS-H-ProT, MS7-H550-Pro, MS7-H550-S, MS-H280-Pro
18900148 　 Support clamp of PT1000, use with  MS-H280-Pro
18900294 　 Set includs support clamp of PT1000, use with  MS-H280-Pro and PT1000Temperature sensor
18101006 　 Reaction block for 50ml round bottom flask (one flask capacity), suitable for MS-H-Pro+ and MS-H280-Pro
18101007 　 Reaction block for 100ml round bottom flask (one flask capacity), suitable for MS-H-Pro+ and MS-H280-Pro
18101008 　 Reaction block for 250ml round bottom flask (one flask capacity), suitable for MS-H-Pro+ and MS-H280-Pro
18101009 　 Reaction block for 500ml round bottom flask (one flask capacity), suitable for MS-H-Pro+ and MS-H280-Pro
18900259 　 Reaction block for 1000ml round bottom flask (one flask capacity), suitable for MS-H-Pro+ and MS-H280-Pro
18900260 　 Reaction block for 2000ml round bottom flask (one flask capacity), suitable for MS-H-Pro+ and MS-H280-Pro
18900006 MSBAR10 Stirrer bar（10mm x 6mm），1pc/pk
18900007 MSBAR15 Stirrer bar（15mm x 8mm），1pc/pk
18900008 MSBAR20 Stirrer bar（20mm x 8mm），1pc/pk
18900009 MSBAR25 Stirrer bar（25mm x 8mm），1pc/pk
12500005 MSBAR30 Stirrer bar（30mm x 6mm），1pc/pk
18900011 MSBAR40 Stirrer bar（40mm x 8mm），1pc/pk
12500004 MSBAR50 Stirrer bar（50mm x 8mm），1pc/pk
18900015 MARRM Stirrer bar remover, length of 200mm, 1pc/pk
