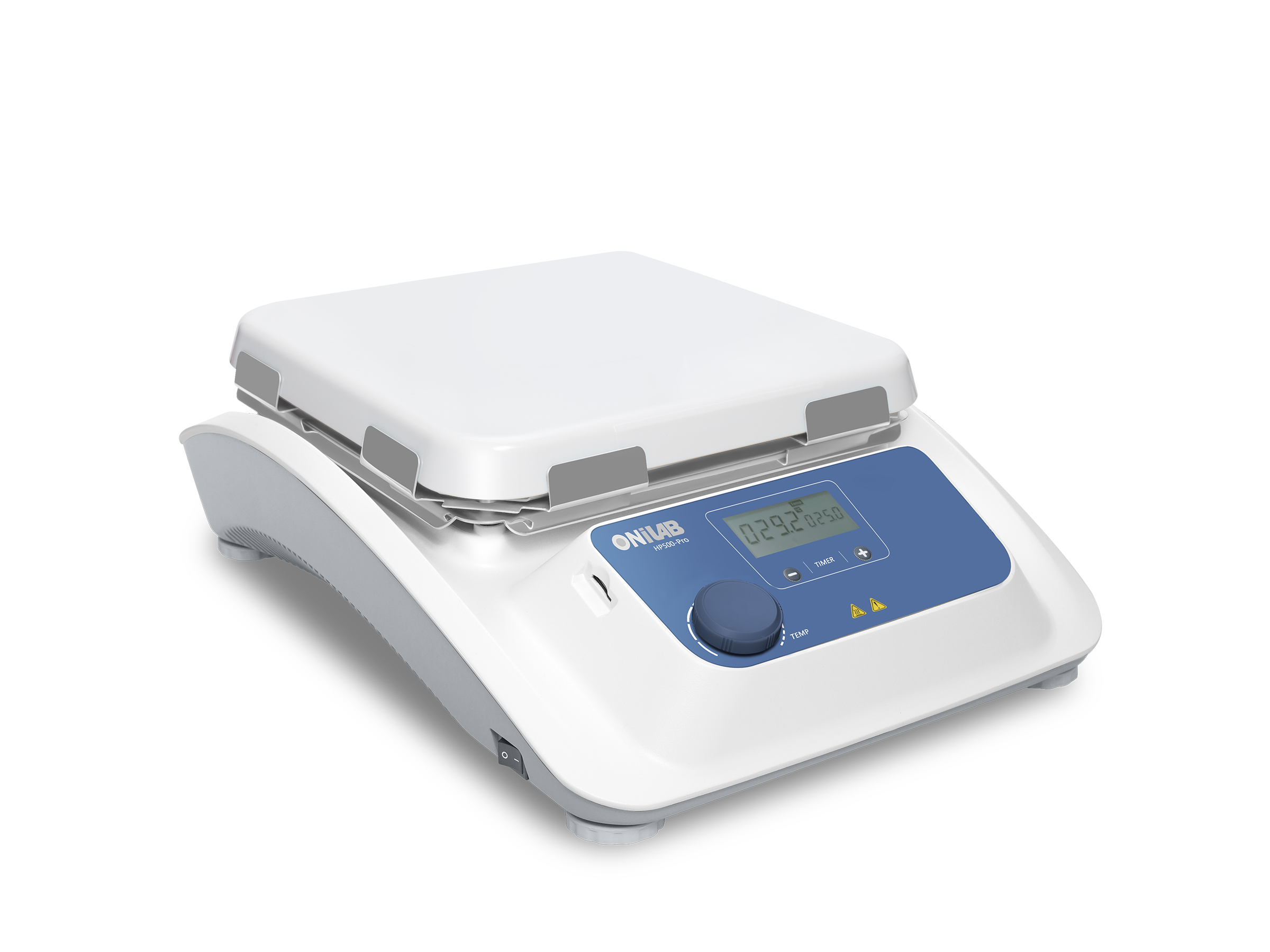

HP500-PRO
/Hotplates/
Key Features
· LCD screen shows temperature,Max. temperature up to 500℃
· 10-inch glass ceramic work plate provides excellent chemical-resistant performance and most efficient heat transfer
· External temperature control is possible by connecting the temperature sensor(PT 1000) with an accuracy at ±0.2°C
· The “HOT” warning will flash if the work plate temperature is above 50°C even when the hotplate is turned off
· Heating temperature: room temperature ~ 500℃.
· Data connector : The SD card also records the instrument's running data in real time.
· Timing function: the running time of the instrument can be set.
· LCD screen shows temperature,Max. temperature up to 500℃
· 10-inch glass ceramic work plate provides excellent chemical-resistant performance and most efficient heat transfer
· External temperature control is possible by connecting the temperature sensor(PT 1000) with an accuracy at ±0.2°C
· The “HOT” warning will flash if the work plate temperature is above 50°C even when the hotplate is turned off
· Heating temperature: room temperature ~ 500℃.
· Data connector : The SD card also records the instrument's running data in real time.
· Timing function: the running time of the instrument can be set.
Parameter
/Hotplates/
| Work plate Dimension [W x D] | 254x254mm（10 inch） |
| Work plate material | Glass ceramic |
| Heating position | 1 |
| Heating temperature range | Room Temp.-500℃, increment 1℃ |
| Temperature control accuracy | ±1℃ (<100℃)±1%(>100℃) |
| Safety temperature | 540℃ |
| Temperature,time display | LCD |
| Timer function | 1min-99h59min |
| Temperature display accuracy | ±0.1℃ |
| External temperature sensor | PT1000(±0.2℃) |
| "Hot" warning | 50℃ |
| Protection class | IP21 |
| Power | 1400W |
| Heating output | 1350W |
| Voltage Frequency | 100-120/200-240V 50/60Hz |
| Dimension[WxDxH] | 328x424x138mm |
| Weight | 7.18kg |
| Permissible ambient temperature and humidity | 5-40℃，80%RH |
