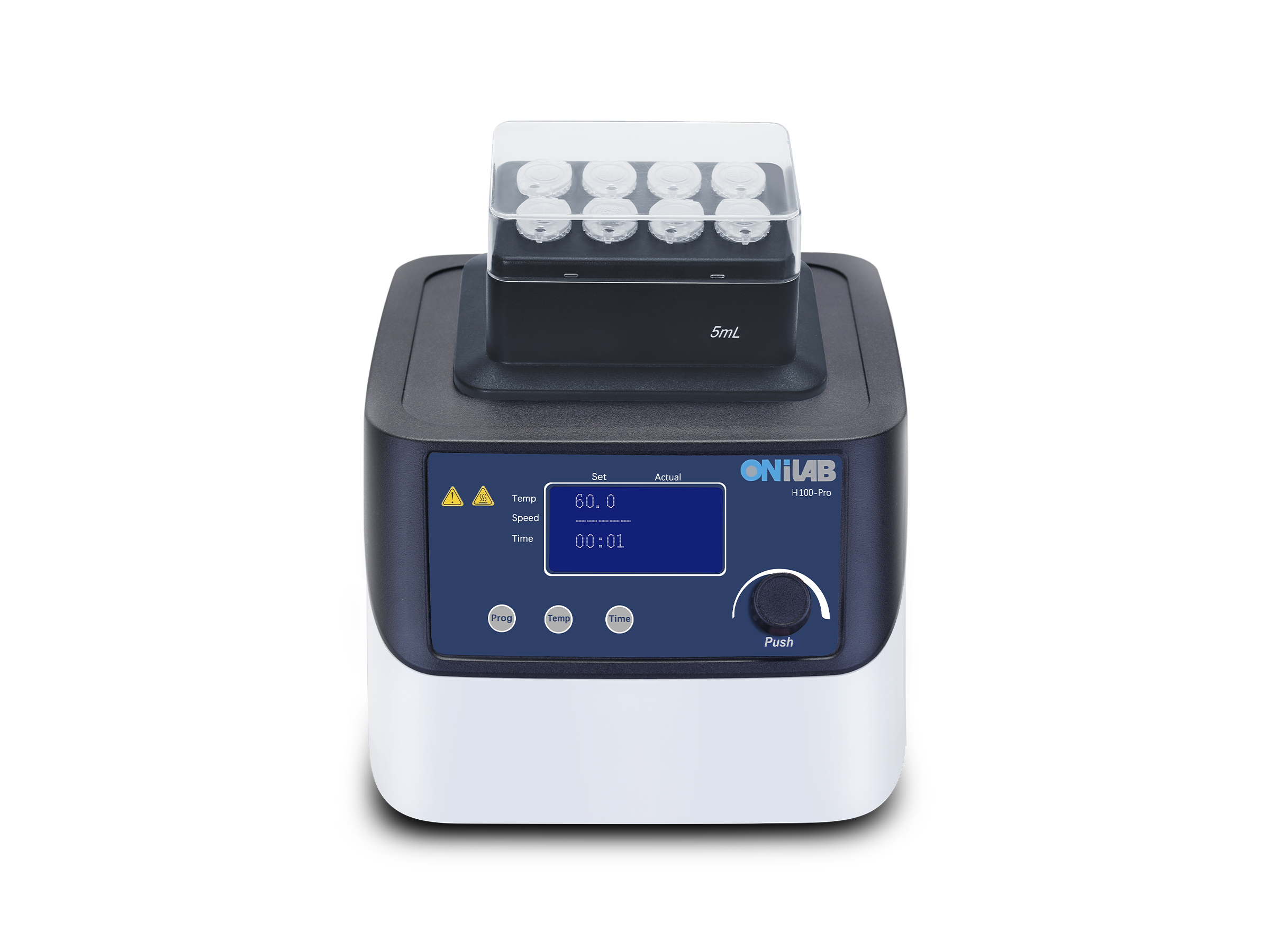

H100-Pro
/Dry Bath/
Key Features
• Excellent mixing result
• Flexible adapter selection
• Programmable
• Compatible with various tubes
• Quick interchange of blocks with magnet adhesion technology and without any tools
• Block equipped with a lid for heat preservation
• Excellent mixing result
• Flexible adapter selection
• Programmable
• Compatible with various tubes
• Quick interchange of blocks with magnet adhesion technology and without any tools
• Block equipped with a lid for heat preservation
Parameter
/Dry Bath/
| Specifications | H100-Pro |
| Functions | Heating |
| Temperature range | Heating: room temp+5℃- 100°C |
| Temperature setting range specifications | 15-100℃ |
| Temperature control accuracy | ± 0.5°C |
| Temperature uniformity | Max.± 0.5°C |
| Max. heating rate | 5.5°C/min |
| Time setting range | 0~99h30min |
| Display | TFT |
| Program | 9 |
| Overheating protection | 150°C |
| Adapter block material | aluminum |
| Voltage, Frequency | DC12V,100–240V,50/60Hz |
| Power | 200W |
|
Dimension [D×W×H] ( without the heating block ) |
200×235×120mm |
| Weight | 7.3kg |
Number and accessory
/Dry Bath/
| Cat. No. | P/N | Descriptions | Power supply |
| 5062101111 | H100-Pro | LCD digital Thermo control with heating, with 1pcs heating block for free (select a size) | USA plug,100V-120V/50Hz/60Hz |
| Cn plug, 200V-240V/50Hz/60Hz | |||
| Euro plug, 200V-240V/50Hz/60Hz | |||
| UK plug, 200V-240V/50Hz/60Hz |
| Accessories of Thermo Mix(Quick change,magnetic mounting) only adapt to upgraded equipments，Black | |||
| Cat. No. | P/N | Descriptions | |
| 18900401 | Heating block, used for 0.5mL tubes, 24 holes | ||
| 18900402 | Heating block, used for 1.5mL tubes, 24 holes(cone bottom) | Replaced 18900448 | |
| 18900403 |
Heating block, used for 2mL tubes, 24 holes( round bottom) |
Replaced 18900450 | |
| 18900404 | Heating block, used for 5mL tubes, 8 holes | ||
| 18900405 | Heating block, used for 5mL tubes, 8 holes, cone bottom | Replaced 18900466 | |
| 18900406 | Heating block, used for 15mL tubes, 8 holes | ||
| 18900407 | Heating block, used for 50mL tubes, 4 holes | Replaced 18900456 | |
| 18900420 | Heating block, used for 0.2ml/96 well PCR plate | ||
| 18900423 | Heating block, used for 96/384 microplate | ||
| Accessories of Thermo Mix(Quick change,magnetic mounting) only adapt to upgraded equipments，Gray | |||
| Cat. No. | P/N | Descriptions | |
| 18900446 | Heating block, used for 0.5mL tubes, 24 holes | ||
| 18900452 | Heating block, used for 5mL tubes, 8 holes | ||
| 18900422 | Heating block, used for 0.2ml/96 well PCR plate | ||
| 18900425 | Heating block, used for 96/384 microplate | ||
