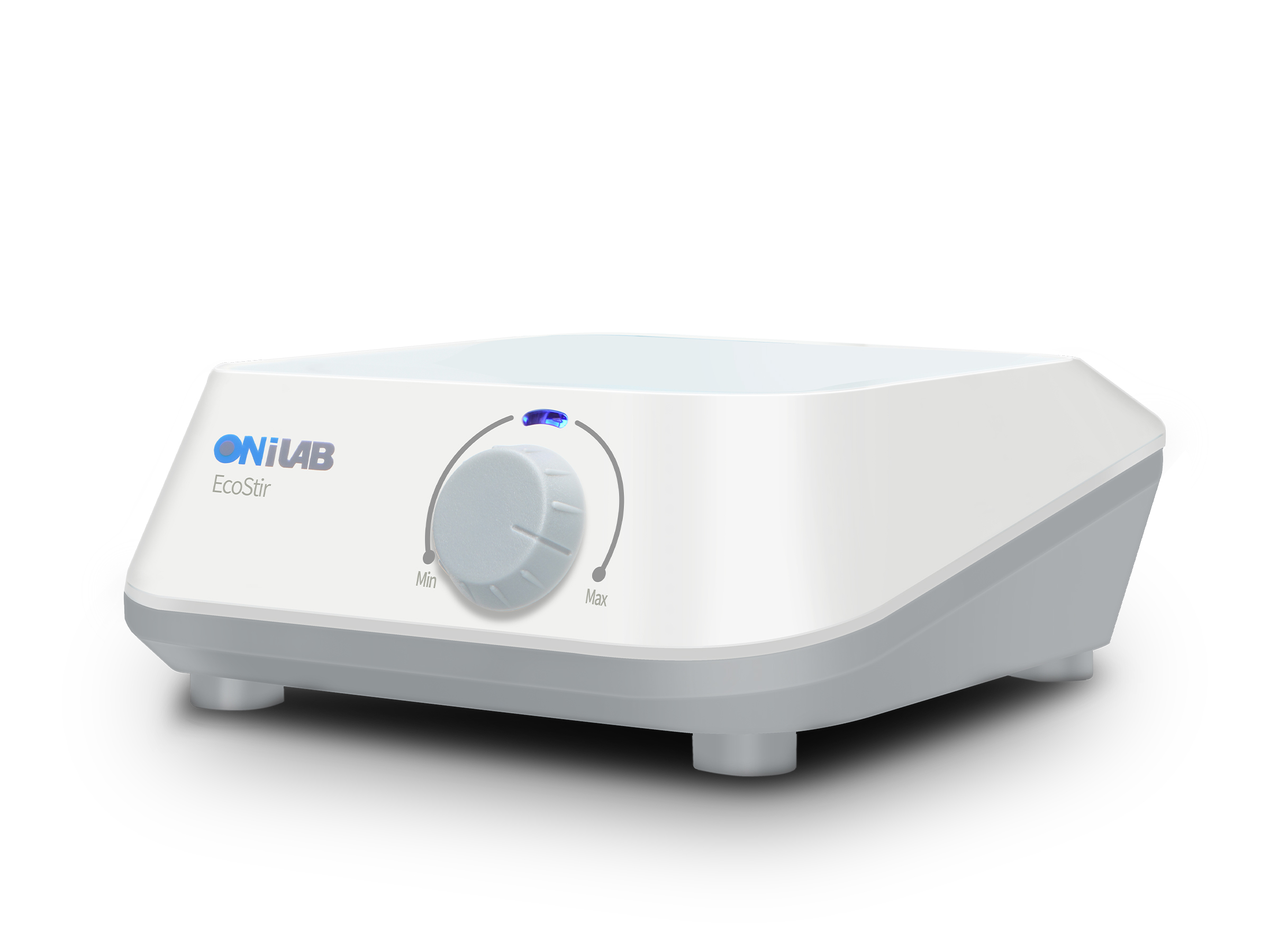

EcoStir（Square Plate）
/Magnetic Stirrers/
Key Features
DLAB square plate magnetic stirrer, designed with electrode holder, it is basic and ideal tool in general labs for electrochemistry measurements or water&environment monitoring, drug or food analysis, liquid culture mixing, etc.
• Compact design with small footprint, 12V voltage available for mobile labs
• Square work plate supports 1.5L stirring capacity
• Holder with clamp for PH electrode or other sensor
• Default PET top provides excellent chemical resistance
• Extra colorful stickers satisfy DIY design by yourself
• Maintenance free brushless DC motor
DLAB square plate magnetic stirrer, designed with electrode holder, it is basic and ideal tool in general labs for electrochemistry measurements or water&environment monitoring, drug or food analysis, liquid culture mixing, etc.
• Compact design with small footprint, 12V voltage available for mobile labs
• Square work plate supports 1.5L stirring capacity
• Holder with clamp for PH electrode or other sensor
• Default PET top provides excellent chemical resistance
• Extra colorful stickers satisfy DIY design by yourself
• Maintenance free brushless DC motor
Parameter
/Magnetic Stirrers/
| Specifications | EcoStir |
| Work plate Size | 120×115mm |
| Work plate material | PET |
| Motor type | Brushless DC motor |
| Stirring positions | 1 |
| Max. stirring quantity[H2O] | 1.5L |
| Max. magnetic bar[length] | 40mm |
| Speed range | 300-2000rpm |
| Speed setting | Scale |
| Protection class | IP21 |
| Motor output power | 1.2W |
| Power | 7.2W |
| Voltage | DC12V，100-240V,50/60Hz |
| Dimension [W x D x H] | 150x144x54mm |
| Weight | 0.3kg |
| Permissible ambient temperature and humidity | 5-40°C,80%RH |
Number and accessory
/Magnetic Stirrers/
| Cat. No. | P/N | Descriptions | Power supply |
| 8030197000 | EcoStir(with square work plate) | 120x115mm | Cn plug,100V-220V/50Hz/60Hz |
| Euro plug,100V-220V/50Hz/60Hz |
