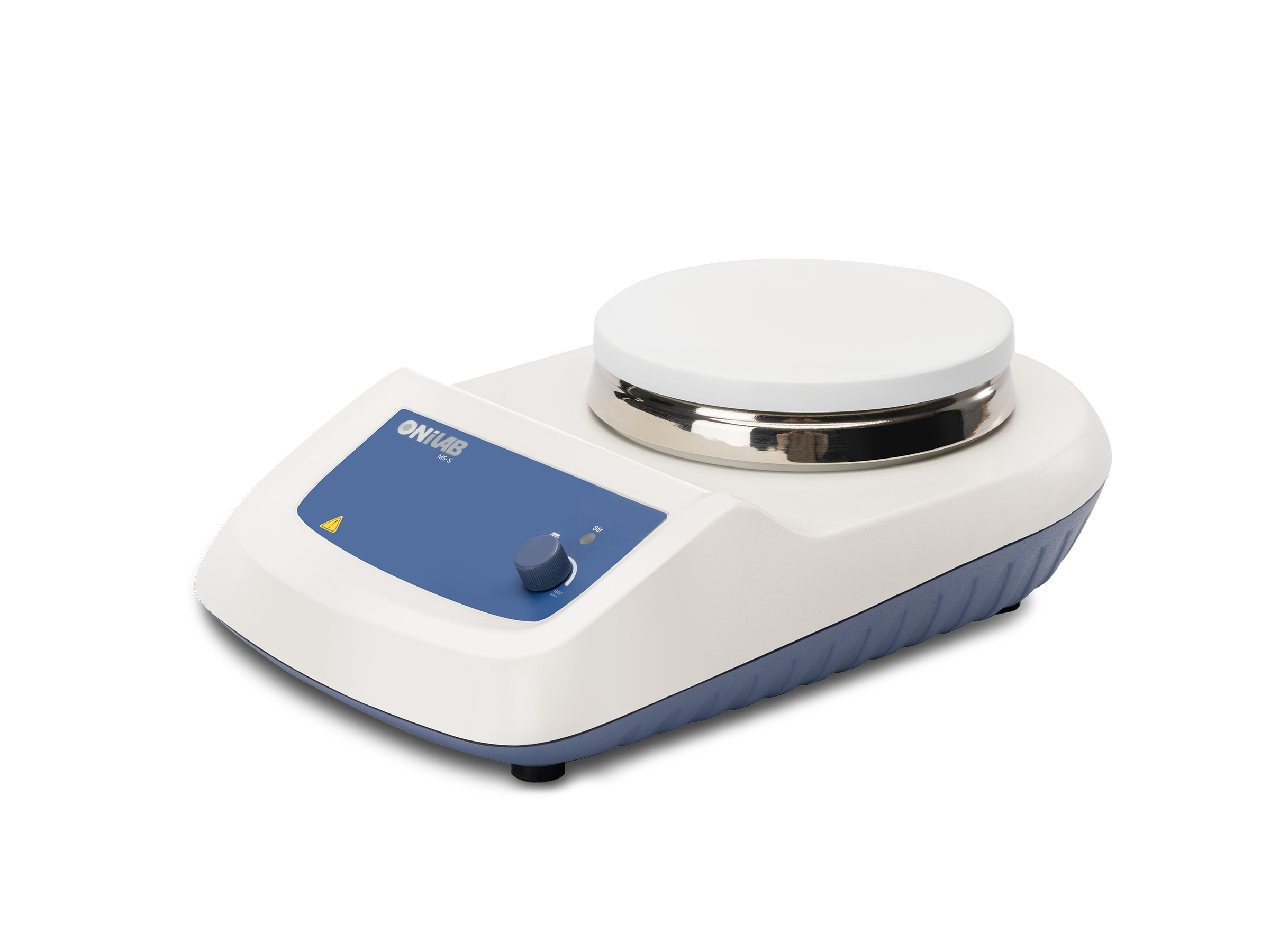

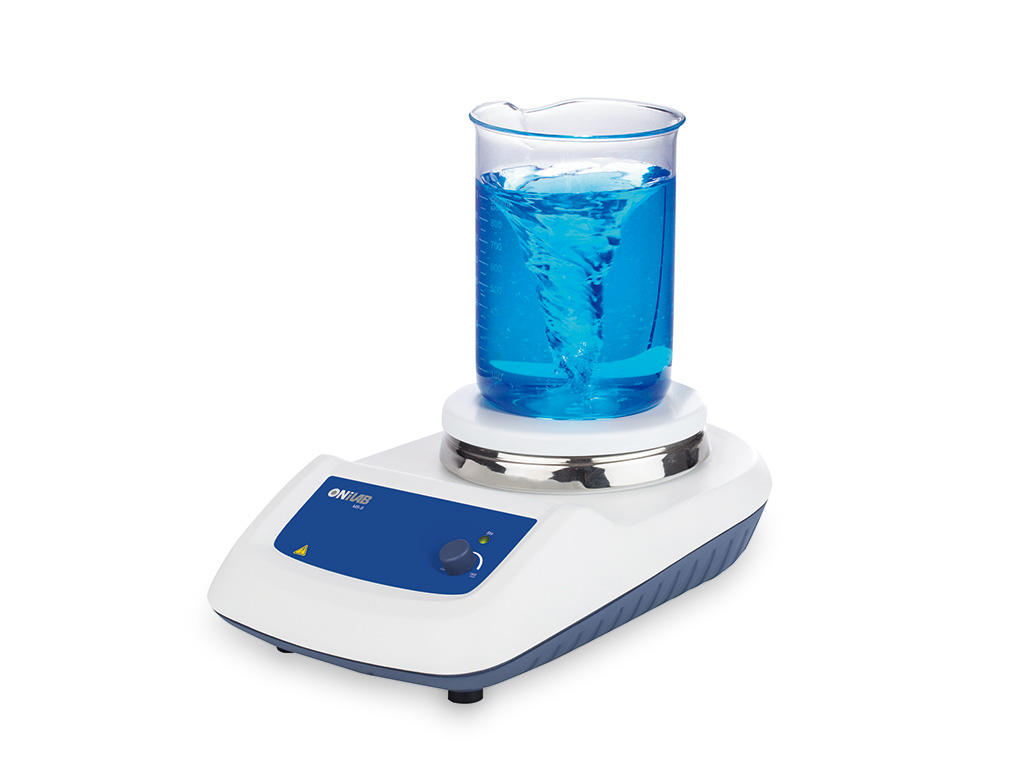

MS-S
/Magnetic Stirrers/
Key Features

•   Maintenance free brushless DC motor
•   Speed range of 0-1500 rpm
•   Max. stirring quantity of H2O at 20L
•   Stainless steel work plate cover with ceramic material provides good chemical resistance  performance
Parameter
/Magnetic Stirrers/
Specifications MS-S
Work plate dimension φ135mm(5 inch)
Work plate material    Stainless steel cover with ceramic
Motor type Brushless DC motor
Motor input power 18W
Motor output power 10W
Power 30W
Voltage 100-240V,50/60Hz
Stirring positions 1
Max. stirring quantity[H2O] 20L
Max. magnetic bar[length] 80mm
Speed range 0-1500rpm
Speed display Scale
Protection class IP42
Dimension[WxDxH] 160×280×85mm
Weight 2.8kg
Permissible ambient temperature and humidity 5-40°C, 80%RH

Number and accessory
/Magnetic Stirrers/
Cat. No. P/N Descriptions Power supply
8050211000 MS-S Classic Magnetic Stirrer，stainless steel with ceramic coated plate USA plug,100V-220V/50Hz/60Hz
Cn plug,100V-220V/50Hz/60Hz
Euro plug,100V-220V/50Hz/60Hz
UK plug, 100V-220V/50Hz/60Hz

Cat. No. P/N Descriptions
18900001 MS 135.1 Blue carrying plate，suitable for hotplate，used with MS135.2-7, suitable for MS-H-Pro+
18900065 MS 135.8 Blue Fixed ring，suitable for hotplate，used with MS135.2-7,suitable for MS-H-Pro+
18900002 MS 135.2 Red quarter pie, 11 holes，4 ml reaction vessel，Ø15.2mm，20mm depth, used with MS135.1 and MS 135.8,suitable for MS-H-Pro+,MS-H550-Pro, MS7-H550-S
18900003 MS 135.3 Purple quarter pie, 4 holes，20 ml reaction vessel，Ø28mm，24mm depth, used with MS135.1 and MS 135.8 ,suitable for MS-H-Pro+,MS-H550-Pro and MS7-H550-S
18900004 MS 135.4 Blue quarter pie, 4 holes, 30 ml reaction vessel，Ø28mm，30mm depth, used with MS 135.1 and MS 135.8,suitable for MS-H-Pro+,MS-H550-Pro and MS7-H550-S
18900005 MS 135.5 Black quarter pie, 4 holes, 40 ml reaction vessel，Ø28mm，43mm depth, used with MS 135.1 and MS 135.8,suitable for MS-H-Pro+,MS-H550-Pro and MS7-H550-S
18900048 MS 135.6 Green quarter pie，6 holes, 8ml reaction vessel，Ø17.8mm，26mm depth, used with MS135.1 and MS135.8,suitable for MS-H-Pro+,MS-H550-Pro and MS7-H550-S
18900049 MS 135.7 Golden quarter pie，4 holes, 16ml reaction vessel，Ø21.6mm，31.7mm depth, used with MS 135.1 and MS 135.8,suitable for MS-H-Pro+,MS-H550-Pro and MS7-H550-S
18101007 　 Reaction block for 100ml round bottom flask (one flask capacity), suitable for MS-H-Pro+ and MS-H280-Pro
18101008 　 Reaction block for 250ml round bottom flask (one flask capacity), suitable for MS-H-Pro+ and MS-H280-Pro
18101009 　 Reaction block for 500ml round bottom flask (one flask capacity), suitable for MS-H-Pro+ and MS-H280-Pro
18900006 MSBAR10 Stirrer bar（10mm x 6mm），1pc/pk
18900007 MSBAR15 Stirrer bar（15mm x 8mm），1pc/pk
18900008 MSBAR20 Stirrer bar（20mm x 8mm），1pc/pk
18900009 MSBAR25 Stirrer bar（25mm x 8mm），1pc/pk
12500005 MSBAR30 Stirrer bar（30mm x 6mm），1pc/pk
18900011 MSBAR40 Stirrer bar（40mm x 8mm），1pc/pk
12500004 MSBAR50 Stirrer bar（50mm x 8mm），1pc/pk
18900013 MSBAR65 Stirrer bar（65mm x 8mm），1pc/pk
18900014 MSBAR80 Stirrer bar（80mm x 13mm)，1pc/pk
18900016 PT1000-A Temperature sensor for digital hotplate models,length of 230mm, used for MS-H-Pro +,MS-H-ProT, MS7-H550-Pro, MS7-H550-S, MS-H280-Pro and MS-H380-Pro
18900136 PT1000-B Temperature sensor with glass coated, length of 230mm, used for digital hotplate models, used for MS-H-Pro +,MS-H-ProT, MS7-H550-Pro, MS7-H550-S, MS-H280-Pro and MS-H380-Pro
18900084 PT1000-C Temperature sensor, length of 100mm, used for digital hotplate models, used for MS-H-Pro +, MS-H-ProT,MS7-H550-Pro, MS7-H550-S, MS-H280-Pro and MS-H380-Pro
18900017 　 Support clamp of PT1000
18900293 　 Set includs support clamp of PT1000 and PT1000 Temperature sensor
18900018 F100 F100 protective cover，for non-hotplate model,use with  MS-S
18900019 F101 F101 protective cover，for hotplate model,use with MS-H-Pro + and  MS-H-S
