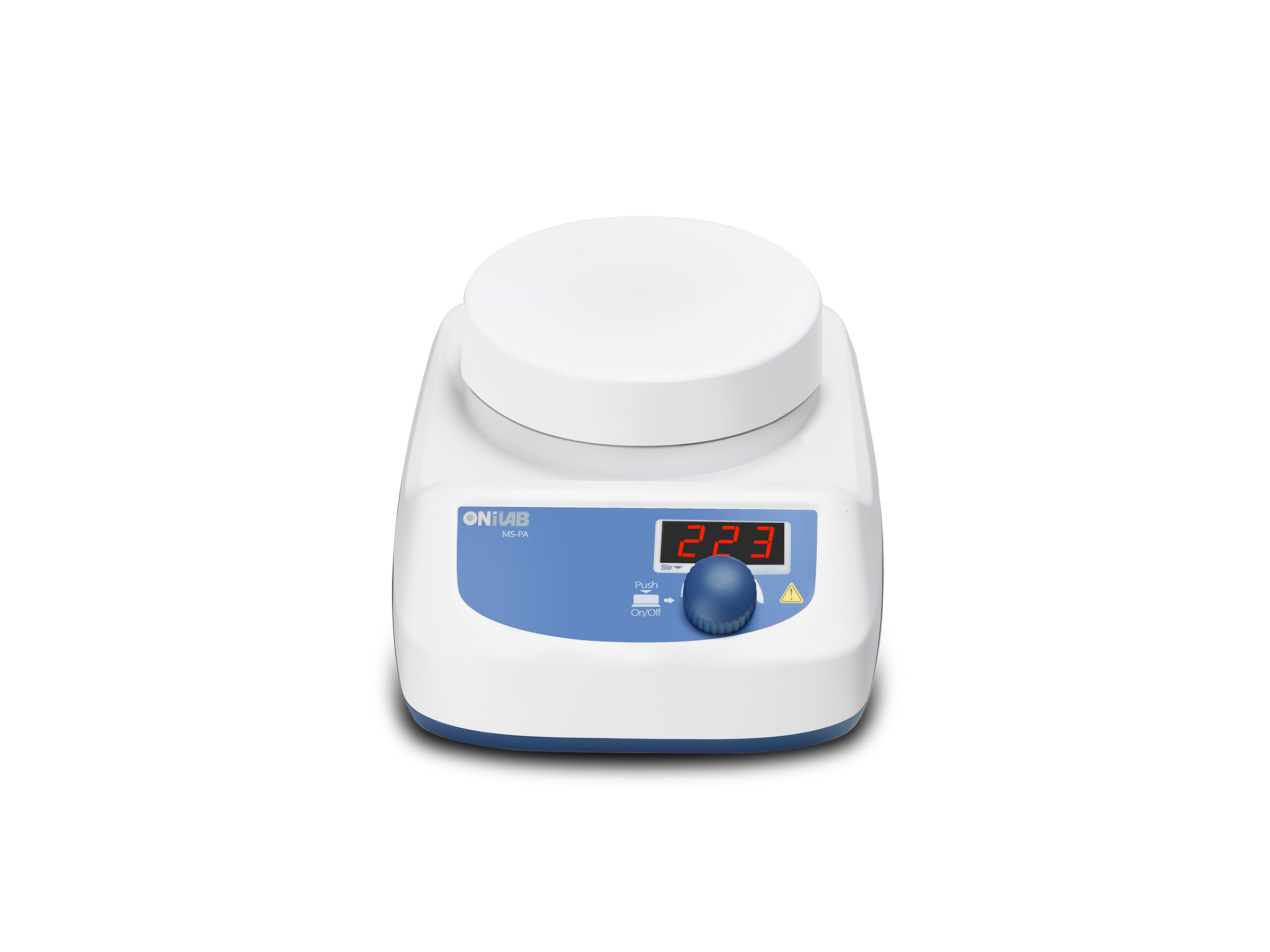

MS-PA
/Magnetic Stirrers/
Key Features
• Digital speed control within the range of 100-1500rpm
• Max. stirring quantity of H2O at 3L
• LED display shows speed
• Nylon+GF housing provides a good performance of chemical resistance
• Digital speed control within the range of 100-1500rpm
• Max. stirring quantity of H2O at 3L
• LED display shows speed
• Nylon+GF housing provides a good performance of chemical resistance
Parameter
/Magnetic Stirrers/
| Specifications | MS-PA |
| Work plate material | Nylon+GF |
| Motor type | Brushless DC motor |
| Motor input power | 5W |
| Motor output power | 3W |
| Power | 15W |
| Voltage | 100-120/200-240V 50/60Hz |
| Stirring positions | 1 |
| Max. stirring quantity[H2O] | 3L |
| Max. magnetic bar[length] | 50mm |
| Speed range | 100-1500rpm |
| Speed display | LED |
| Protection class | IP42 |
| Dimension [W x D x H] | 150×260×80mm |
| Weight | 1.8kg |
| Permissible ambient temperature and humidity | 5-40°C 80%RH |
Number and accessory
/Magnetic Stirrers/
| Cat. No. | P/N | Descriptions |
| 18900016 | PT1000-A | Temperature sensor for digital hotplate models,length of 230mm, used for MS-H280-Pro, MS-H-Pro +,MS-H-ProT, MS7-H550-Pro, MS7-H550-S |
| 18900136 | PT1000-B | Temperature sensor with glass coated, length of 230mm, used for digital hotplate models, used for MS-H-Pro +, MS-H-ProT,MS7-H550-Pro, MS7-H550-S, MS-H280-Pro |
| 18900084 | PT1000-C | Temperature sensor, length of 100mm, used for digital hotplate models, used for MS-H-Pro +,MS-H-ProT, MS7-H550-Pro, MS7-H550-S, MS-H280-Pro |
| 18900148 | Support clamp of PT1000, use with MS-H280-Pro | |
| 18900294 | Set includs support clamp of PT1000, use with MS-H280-Pro and PT1000Temperature sensor | |
| 18101006 | Reaction block for 50ml round bottom flask (one flask capacity), suitable for MS-H-Pro+ and MS-H280-Pro | |
| 18101007 | Reaction block for 100ml round bottom flask (one flask capacity), suitable for MS-H-Pro+ and MS-H280-Pro | |
| 18101008 | Reaction block for 250ml round bottom flask (one flask capacity), suitable for MS-H-Pro+ and MS-H280-Pro | |
| 18101009 | Reaction block for 500ml round bottom flask (one flask capacity), suitable for MS-H-Pro+ and MS-H280-Pro | |
| 18900259 | Reaction block for 1000ml round bottom flask (one flask capacity), suitable for MS-H-Pro+ and MS-H280-Pro | |
| 18900260 | Reaction block for 2000ml round bottom flask (one flask capacity), suitable for MS-H-Pro+ and MS-H280-Pro | |
| 18900006 | MSBAR10 | Stirrer bar（10mm x 6mm），1pc/pk |
| 18900007 | MSBAR15 | Stirrer bar（15mm x 8mm），1pc/pk |
| 18900008 | MSBAR20 | Stirrer bar（20mm x 8mm），1pc/pk |
| 18900009 | MSBAR25 | Stirrer bar（25mm x 8mm），1pc/pk |
| 12500005 | MSBAR30 | Stirrer bar（30mm x 6mm），1pc/pk |
| 18900011 | MSBAR40 | Stirrer bar（40mm x 8mm），1pc/pk |
| 12500004 | MSBAR50 | Stirrer bar（50mm x 8mm），1pc/pk |
| 18900015 | MARRM | Stirrer bar remover, length of 200mm, 1pc/pk |
