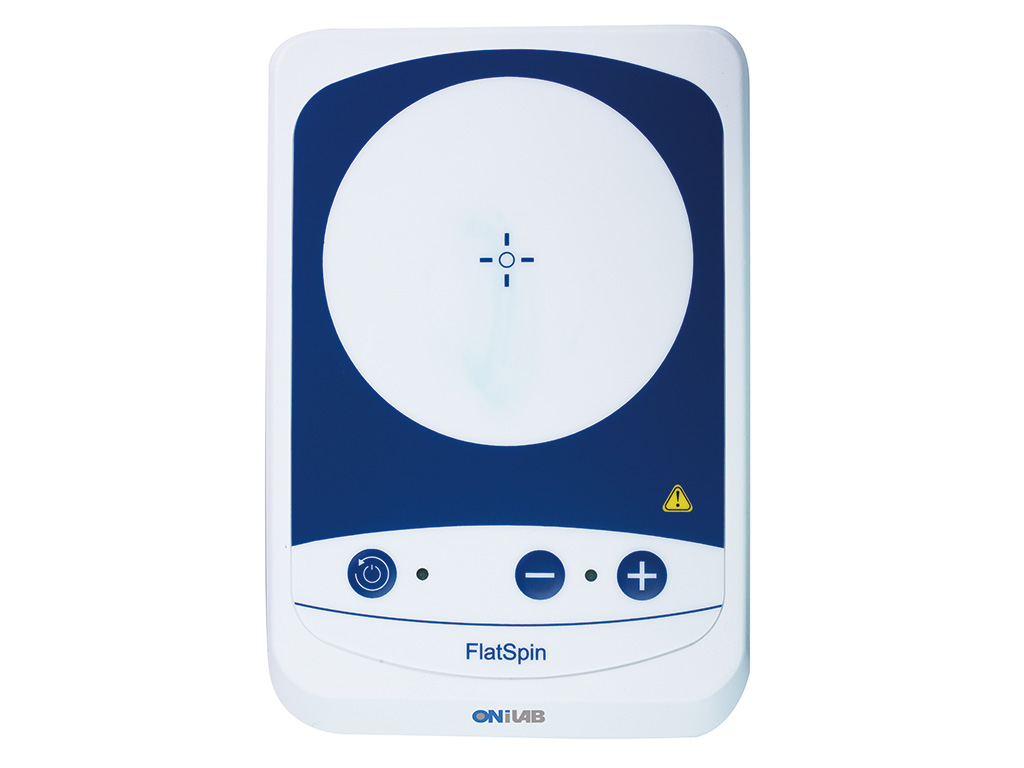

FlatSpin
/Magnetic Stirrers/
Key Features
• A wide range of speed from 15 to 1500rpm
• Automatic reverse rotation for excellent mixing
• Protection class (IP65)
• PET top provides excellent chemical resistance
• Ultra silence and vibration-free
• A wide range of speed from 15 to 1500rpm
• Automatic reverse rotation for excellent mixing
• Protection class (IP65)
• PET top provides excellent chemical resistance
• Ultra silence and vibration-free
Parameter
/Magnetic Stirrers/
| Specifications | FlatSpin |
| Work plate Dimension | φ90mm |
| Work plate material | PET |
| Motor type | Motorless |
| Motor output power | 3W |
| Power | 5W |
| Voltage | 100-120/200-240,V50/60Hz |
| Stirring positions | 1 |
| Max. stirring quantity[H2O] | 0.8L |
| Max. magnetic bar[length] | 40mm |
| Speed range | 15-1500rpm |
| Speed setting | button |
| Protection class | IP65 |
| Dimension [W x D x H] | 175x120x15mm |
| Weight | 0.3kg |
| Permissible ambient temperature and humidity | 5-40°C,80%RH |
Number and accessory
/Magnetic Stirrers/
| Cat. No. | P/N | Descriptions | Power supply |
| 8050184000 | Flatspin | Ultra-flat Compact magnetic stirrer, | USA plug,100V-240V/50Hz/60Hz |
| Cn plug,100V-240V/50Hz/60Hz | |||
| Euro plug,100V-240V/50Hz/60Hz | |||
| UK plug,100V-240V/50Hz/60Hz |
| Cat. No. | P/N | Descriptions |
| 18900016 | PT1000-A | Temperature sensor for digital hotplate models,length of 230mm, used for MS-H280-Pro, MS-H-Pro +,MS-H-ProT, MS7-H550-Pro, MS7-H550-S |
| 18900136 | PT1000-B | Temperature sensor with glass coated, length of 230mm, used for digital hotplate models, used for MS-H-Pro +, MS-H-ProT,MS7-H550-Pro, MS7-H550-S, MS-H280-Pro |
| 18900084 | PT1000-C | Temperature sensor, length of 100mm, used for digital hotplate models, used for MS-H-Pro +,MS-H-ProT, MS7-H550-Pro, MS7-H550-S, MS-H280-Pro |
| 18900148 | Support clamp of PT1000, use with MS-H280-Pro | |
| 18900294 | Set includs support clamp of PT1000, use with MS-H280-Pro and PT1000Temperature sensor | |
| 18101006 | Reaction block for 50ml round bottom flask (one flask capacity), suitable for MS-H-Pro+ and MS-H280-Pro | |
| 18101007 | Reaction block for 100ml round bottom flask (one flask capacity), suitable for MS-H-Pro+ and MS-H280-Pro | |
| 18101008 | Reaction block for 250ml round bottom flask (one flask capacity), suitable for MS-H-Pro+ and MS-H280-Pro | |
| 18101009 | Reaction block for 500ml round bottom flask (one flask capacity), suitable for MS-H-Pro+ and MS-H280-Pro | |
| 18900259 | Reaction block for 1000ml round bottom flask (one flask capacity), suitable for MS-H-Pro+ and MS-H280-Pro | |
| 18900260 | Reaction block for 2000ml round bottom flask (one flask capacity), suitable for MS-H-Pro+ and MS-H280-Pro | |
| 18900006 | MSBAR10 | Stirrer bar（10mm x 6mm），1pc/pk |
| 18900007 | MSBAR15 | Stirrer bar（15mm x 8mm），1pc/pk |
| 18900008 | MSBAR20 | Stirrer bar（20mm x 8mm），1pc/pk |
| 18900009 | MSBAR25 | Stirrer bar（25mm x 8mm），1pc/pk |
| 12500005 | MSBAR30 | Stirrer bar（30mm x 6mm），1pc/pk |
| 18900011 | MSBAR40 | Stirrer bar（40mm x 8mm），1pc/pk |
| 12500004 | MSBAR50 | Stirrer bar（50mm x 8mm），1pc/pk |
| 18900015 | MARRM | Stirrer bar remover, length of 200mm, 1pc/pk |
