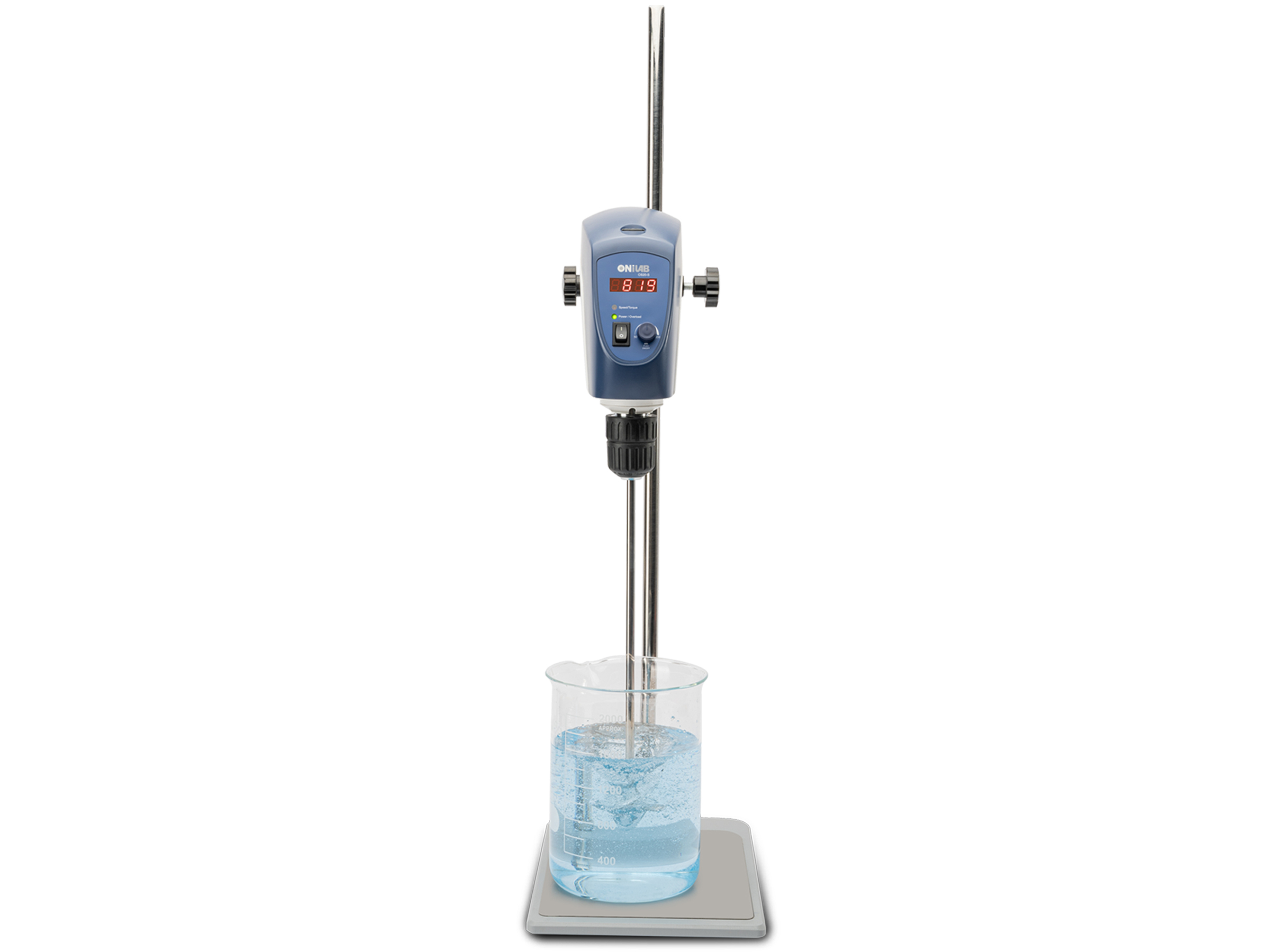

OS20-S
/Overhead Stirrers/
Key Features
· High reliability and outstanding performance.
· A wide range of speed from 50 to 2200rpm.
· Brushless DC motor for long life, maintenance free and explosion proof.
· LED screen for monitoring actual speed.
· Safety circuits allow for safe stop function in anti-stall or overload conditions.
· High reliability and outstanding performance.
· A wide range of speed from 50 to 2200rpm.
· Brushless DC motor for long life, maintenance free and explosion proof.
· LED screen for monitoring actual speed.
· Safety circuits allow for safe stop function in anti-stall or overload conditions.
Parameter
/Overhead Stirrers/
| Specifications | OS20-S |
| Max. stirring quantity(H2O) | 20L |
| Motor type | brushless DC motor |
| Motor input power | 60W |
| Motor output power | 50W |
| Voltage | 100-220V, 50/60 Hz |
| Power | 70W |
| Speed range | 50-2200rpm |
| Speed display accuracy | ±3rpm |
| Speed display | LED |
| Overload protection display | LED lights |
| Max. torque | 40Ncm |
| Viscosity max. | 10000mPas |
| Chuck range diameter | 0.5-10mm |
| Dimension[WxHxD] | 83x220x186mm |
| Weight | 2.8kg |
| Protection class | IP42 |
| Permissible ambient temperature and humidity | 5-40°C, 80%RH |
Number and accessory
/Overhead Stirrers/
| Cat. No. | P/N | Descriptions | Power supply |
| 8053100200 | OS20-S | LED Digital Overhead Stirrer , Max. stirring quantity 20L | USA plug,100V-220V/50Hz/60Hz |
| Cn plug,100V-220V/50Hz/60Hz | |||
| Euro plug,100V-220V/50Hz/60Hz | |||
| UK plug,100V-220V/50Hz/60Hz |
| Cat. No. | P/N | Descriptions | |
| 18900131 | Universal plate stand(WxD: 20x31cm), including support holder(H: 78cm) and fixing device | ||
| 18900071 | Crossed stirrer, shaft length 40cm,stirrer diameter 5cm, 316L stainless steel | ||
| 18900072 | Straight stirrer, shaft length 40cm,stirrer diameter 6cm, 316L stainless steel | ||
| 18900073 | Blade stirrer, shaft length 40cm,stirrer diameter 6.8cm, 316L stainless steel | ||
| 18900074 | Centrifugal stirrer, shaft length 40cm,stirrer diameter 9cm, 316L stainless steel | ||
| 18900075 | Crossed stirrer, shaft length 35cm,stirrer diameter 6.5cm, PTFE coated | ||
| 18900076 | Straight stirrer, shaft length 35cm,stirrer diameter 7cm, PTFE coated | ||
| 18900077 | Blade stirrer, shaft length 35cm,stirrer diameter 6.8cm, PTFE coated | ||
| 18900078 | Centrifugal stirrer, shaft length 35cm,stirrer diameter 8.5cm, PTFE coated | ||
| 18900330 | Crossed stirrer, shaft length 40cm,stirrer diameter 5cm, 316L stainless steel （prevent the liquid spills） | ||
