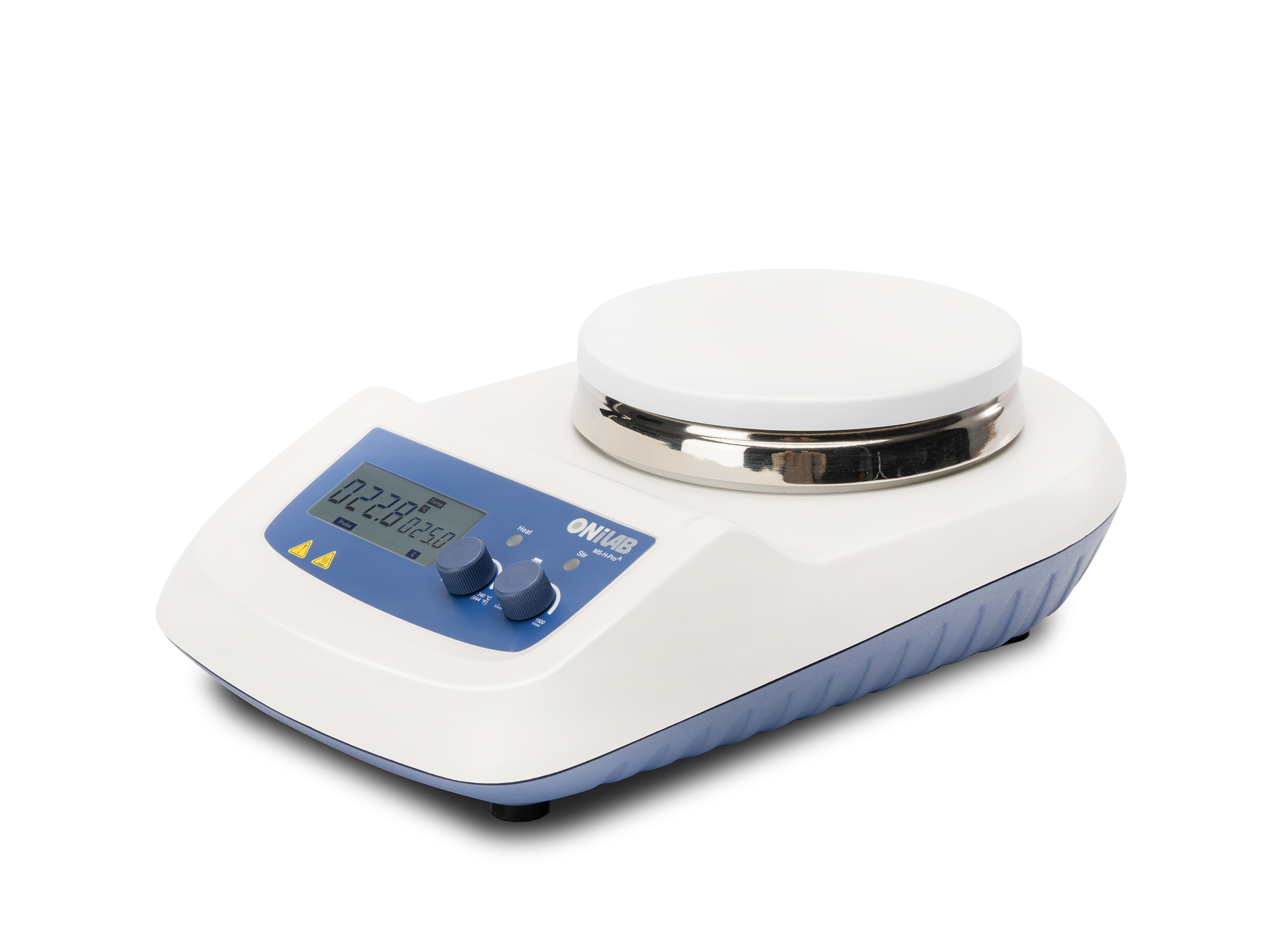

MS-H-PROA
/Magnetic Hotplate Stirrers/
Features
• Digital control with max. temperature at 340℃，max speed up to 1500rpm.
• Aluminum cover with ceramic coating work plate provides fast heating perfermance, and strong compatibility with various heating containers and heating blocks.
• High-resolution LCD display shows actual temperaturesand speed.
• PID controller ensures a precise and steady heating process.
• External temperature control is possible by connecting the temperature sensor(PT 1000) with accuracy at ±0.2°C.
• Brushless DC motor enables more powerful speed control.
• Three heating modes for selected ( fast heating, standard heating and stable heating ).
• Remote control function through RS232 interface provides PC control and data transmission.
• Digital control with max. temperature at 340℃，max speed up to 1500rpm.
• Aluminum cover with ceramic coating work plate provides fast heating perfermance, and strong compatibility with various heating containers and heating blocks.
• High-resolution LCD display shows actual temperaturesand speed.
• PID controller ensures a precise and steady heating process.
• External temperature control is possible by connecting the temperature sensor(PT 1000) with accuracy at ±0.2°C.
• Brushless DC motor enables more powerful speed control.
• Three heating modes for selected ( fast heating, standard heating and stable heating ).
• Remote control function through RS232 interface provides PC control and data transmission.
Parameter
/Magnetic Hotplate Stirrers/
| Specifications | MS-H-ProA |
| Work plate dimension | φ135mm(5inch) |
| Work plate material | Aluminum cover with ceramic coating |
| Motor type | Brushless DC motor |
| Heating temperature range | Room temp.-340℃, increment 1℃ |
| Temperature display accuracy | ±0.1℃ |
| Heating power | 600w |
| Speed range | 100-1500rpm resolution±1rpm |
| Max. stirring quantity[H2O] | 20L |
| Speed display | LCD |
| Temperature display | LCD |
| Motor rating input | 18w |
| Motor rating output | 10w |
| Max. magnetic bar[length] | 80mm |
| Temperature control accuracy | ±1°C(<100℃) ±1%(>100℃) |
| External temperature sensor | PT1000 (accuracy ±0.2℃) |
| Over temperature protection | 420℃ |
| "Hot" warning | 50℃ |
| Data connector | RS232 |
| Protection class | IP21 |
| Voltage | 100~120/200-240V 50/60Hz |
| Power | 650w |
| Dimension[WxDxH] | 280×160×85mm |
| Weight | 2.8kg |
