Product

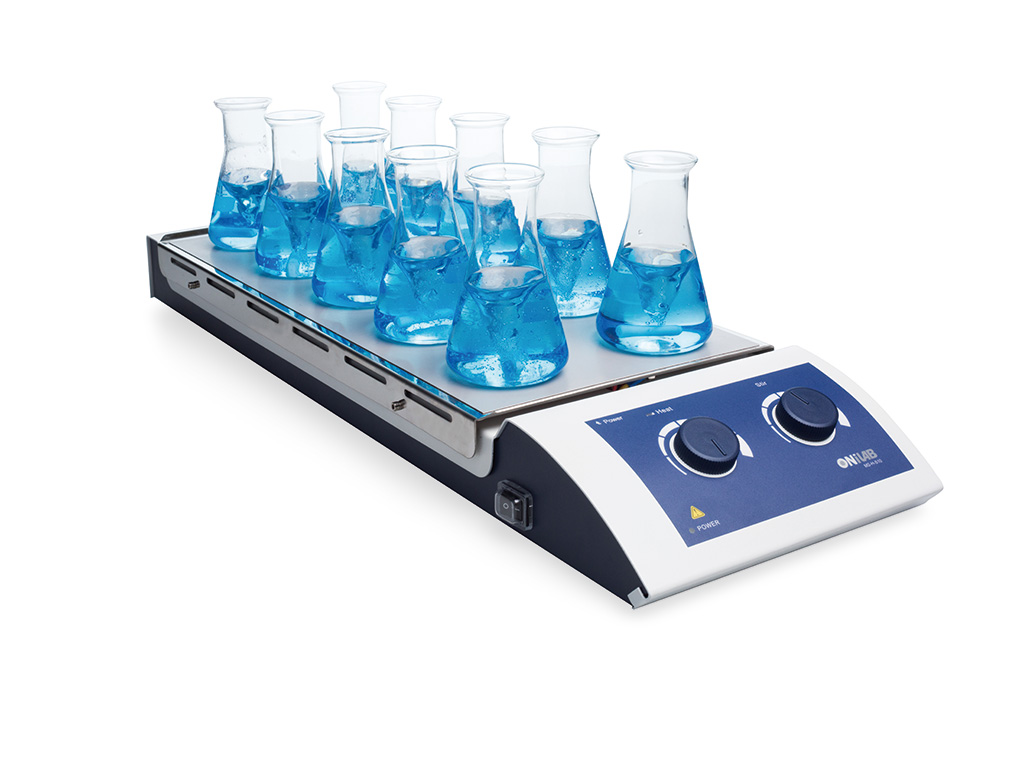

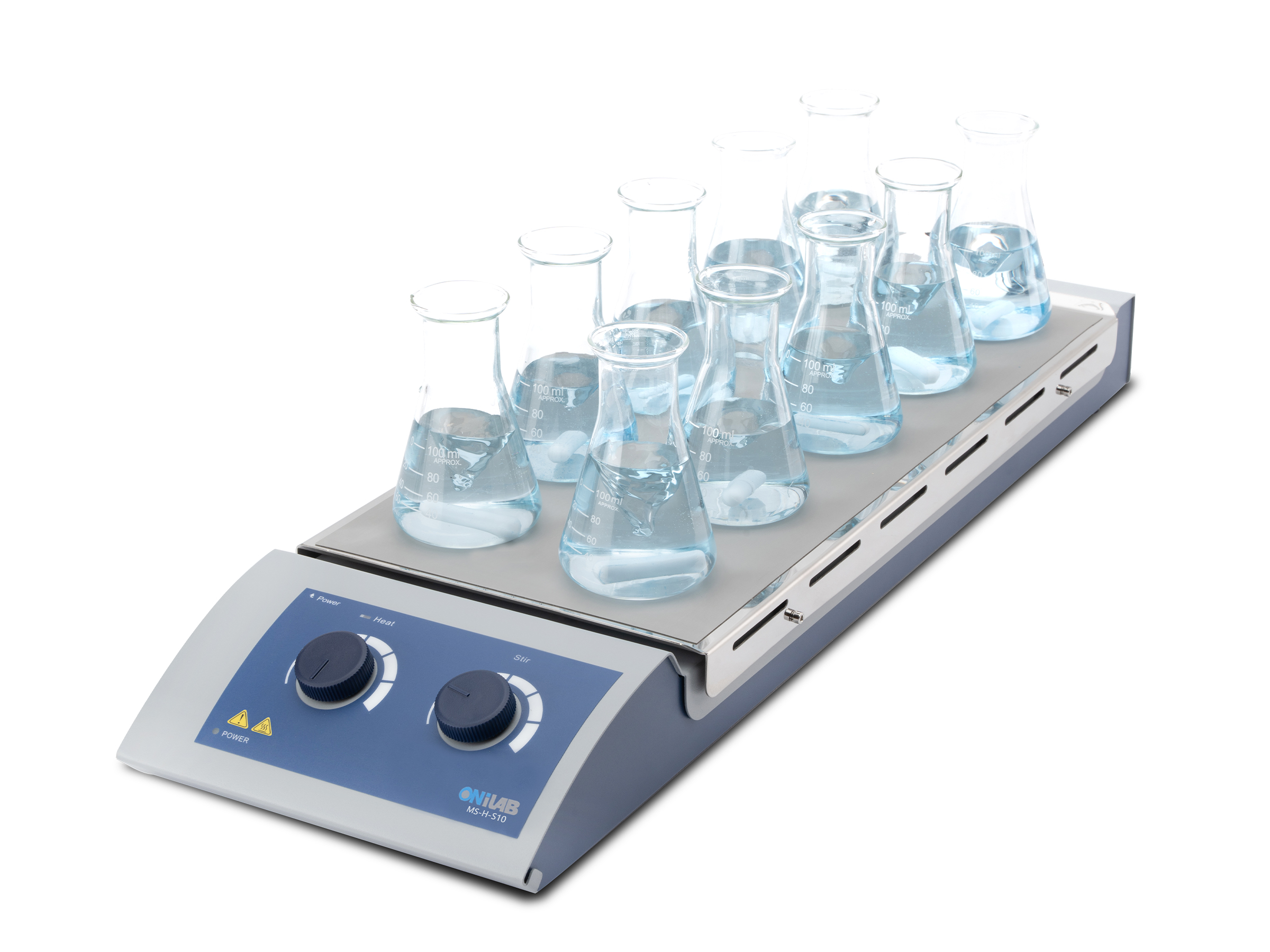

MS-H-S10

/Magnetic Hotplate Stirrers/

Key Features

•   Maintenance-free brushless DC motor
•   Max speed 1100rpm
•   Max.temperature 120°C
•   Stainless steel work plate, covered with silicone cushion, provides the excellent performance of heating uniformity and skid resistance

Parameter

/Magnetic Hotplate Stirrers/

Specifications	MS-H-S10
Work plate Dimension	180x450mm
Work plate material	Stainless steel with silicone
Motor type	Brushless DC motor
Motor rating input	12W
Motor rating output	4W
Power	490W
Heating output	470W
Voltage	100-120/200-240V 50/60Hz
Stirring positions	10
Max. stirring quantity[H2O]	0.4Lx10
Max. magnetic bar[length]	40mm
Speed range	0-1100rpm
Speed display	scale
Temperature display	scale
Heating temperature range	Room temp.-120°C
Over heat Protection	140°C
Temperature display accuracy	IP42
Dimension [W x D x H]	182×622×65mm
Weight	3.2kg
Permissible ambient temperature and humidity	5-40℃ 80%RH

Number and accessory

/Magnetic Hotplate Stirrers/

Cat. No.	P/N	Descriptions	Power supply
8050140000	MS-H-S10	10-Channel Classic Hotplate Magnetic Stirrer, stainless steel plate with silicone film，heating temperature up to 120°C	USA plug,100V-120V/50Hz/60Hz
			Cn plug,200V-240V/50Hz/60Hz
			Euro plug,200V-240V/50Hz/60Hz
			UK plug,200V-240V/50Hz/60Hz

Cat. No.	P/N	Descriptions
18900006	MSBAR10	Stirrer bar（10mm x 6mm），1pc/pk
18900007	MSBAR15	Stirrer bar（15mm x 8mm），1pc/pk
18900008	MSBAR20	Stirrer bar（20mm x 8mm），1pc/pk
18900009	MSBAR25	Stirrer bar（25mm x 8mm），1pc/pk
12500005	MSBAR30	Stirrer bar（30mm x 6mm），1pc/pk
18900011	MSBAR40	Stirrer bar（40mm x 8mm），1pc/pk
