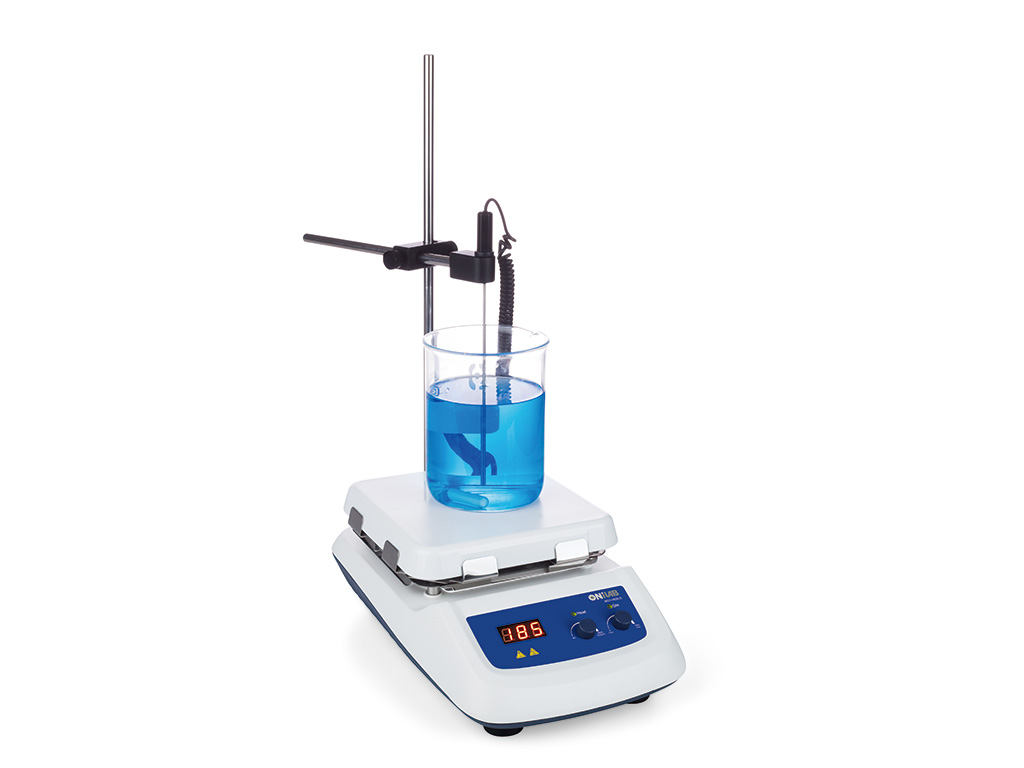

MS7-H550-S
/Magnetic Hotplate Stirrers/
Key Features
• LED display for precise monitoring of temperature
• A wide speed range of 0 to 1500rpm
• Max. Heating plate temperature 550°C
• External temperature control is possible by connecting the temperature sensor(PT1000) with accuracy at ±0.2°C
• The “HOT” warning will flash if the work plate temperature is above 50°C
• LED display for precise monitoring of temperature
• A wide speed range of 0 to 1500rpm
• Max. Heating plate temperature 550°C
• External temperature control is possible by connecting the temperature sensor(PT1000) with accuracy at ±0.2°C
• The “HOT” warning will flash if the work plate temperature is above 50°C
Parameter
/Magnetic Hotplate Stirrers/
| Specifications | MS7-H550-S | |
| Work plate Dimension [W x D] | 184x184mm (7 inch) | |
| Work plate material | Glass ceramic | |
| Motor type | Shaded pole motor | |
| Motor rating input | 15W | |
| Motor rating output | 1.5W | |
| Power | 1030W | |
| Heating output | 1000W | |
| Voltage | 100-120/200-240V 50/60Hz | |
| Stirring positions | 1 | |
| Max. stirring quantity, [H2O] | 10L | |
| Max. magnetic bar[length] | 80mm | |
| Speed range | 0-1500rpm | |
| Speed display | Scale | |
| Temperature display | LED | |
| Heating temperature range | Room temp.-550°C, increment 5°C | |
| Temperature control accuracy | ±10°C | |
| Overheating protection | 580°C | |
| Temperature display accuracy | ±1°C | |
| External temperature sensor | PT1000 (accuracy ±0.2) | |
| "Hot" warning | 50°C | |
| Protection class | IP21 | |
| Dimension [WxDxH] | 215x360x112mm | |
| Weight | 4.5kg | |
| Permissible ambient temperature and humidity | 5-40°C, 80%RH | |
Number and accessory
/Magnetic Hotplate Stirrers/
| Cat. No. | P/N | Descriptions | Power supply |
| 8050122211 | MS7-H550-S | LED Digital 7’’ Square Hotplate Magnetic Stirrer，glass ceramic hotplate，heating temperature up to 550°C,with PT1000 for free (18900016),need to buy support clamp 18900017 | USA plug,100V-120V/60Hz |
| USA plug,100V-120V/50Hz | |||
| Cn plug,200V-240V/50Hz | |||
| Euro plug,200V-240V/50Hz | |||
| Euro plug,200V-240V/60Hz | |||
| UK plug,200V-240V/50Hz |
| Cat. No. | P/N | Descriptions |
| 18900001 | MS 135.1 | Blue carrying plate，suitable for hotplate，used with MS135.2-7, suitable for MS-H-Pro+ |
| 18900065 | MS 135.8 | Blue Fixed ring，suitable for hotplate，used with MS135.2-7,suitable for MS-H-Pro+ |
| 18900002 | MS 135.2 | Red quarter pie, 11 holes，4 ml reaction vessel，Ø15.2mm，20mm depth, used with MS135.1 and MS 135.8,suitable for MS-H-Pro+,MS-H550-Pro, MS7-H550-S |
| 18900003 | MS 135.3 | Purple quarter pie, 4 holes，20 ml reaction vessel，Ø28mm，24mm depth, used with MS135.1 and MS 135.8 ,suitable for MS-H-Pro+,MS-H550-Pro and MS7-H550-S |
| 18900004 | MS 135.4 | Blue quarter pie, 4 holes, 30 ml reaction vessel，Ø28mm，30mm depth, used with MS 135.1 and MS 135.8,suitable for MS-H-Pro+,MS-H550-Pro and MS7-H550-S |
| 18900005 | MS 135.5 | Black quarter pie, 4 holes, 40 ml reaction vessel，Ø28mm，43mm depth, used with MS 135.1 and MS 135.8,suitable for MS-H-Pro+,MS-H550-Pro and MS7-H550-S |
| 18900048 | MS 135.6 | Green quarter pie，6 holes, 8ml reaction vessel，Ø17.8mm，26mm depth, used with MS135.1 and MS135.8,suitable for MS-H-Pro+,MS-H550-Pro and MS7-H550-S |
| 18900049 | MS 135.7 | Golden quarter pie，4 holes, 16ml reaction vessel，Ø21.6mm，31.7mm depth, used with MS 135.1 and MS 135.8,suitable for MS-H-Pro+,MS-H550-Pro and MS7-H550-S |
| 18101007 | Reaction block for 100ml round bottom flask (one flask capacity), suitable for MS-H-Pro+ and MS-H280-Pro | |
| 18101008 | Reaction block for 250ml round bottom flask (one flask capacity), suitable for MS-H-Pro+ and MS-H280-Pro | |
| 18101009 | Reaction block for 500ml round bottom flask (one flask capacity), suitable for MS-H-Pro+ and MS-H280-Pro | |
| 18900006 | MSBAR10 | Stirrer bar（10mm x 6mm），1pc/pk |
| 18900007 | MSBAR15 | Stirrer bar（15mm x 8mm），1pc/pk |
| 18900008 | MSBAR20 | Stirrer bar（20mm x 8mm），1pc/pk |
| 18900009 | MSBAR25 | Stirrer bar（25mm x 8mm），1pc/pk |
| 12500005 | MSBAR30 | Stirrer bar（30mm x 6mm），1pc/pk |
| 18900011 | MSBAR40 | Stirrer bar（40mm x 8mm），1pc/pk |
| 12500004 | MSBAR50 | Stirrer bar（50mm x 8mm），1pc/pk |
| 18900013 | MSBAR65 | Stirrer bar（65mm x 8mm），1pc/pk |
| 18900014 | MSBAR80 | Stirrer bar（80mm x 13mm)，1pc/pk |
| 18900016 | PT1000-A | Temperature sensor for digital hotplate models,length of 230mm, used for MS-H-Pro +,MS-H-ProT, MS7-H550-Pro, MS7-H550-S, MS-H280-Pro and MS-H380-Pro |
| 18900136 | PT1000-B | Temperature sensor with glass coated, length of 230mm, used for digital hotplate models, used for MS-H-Pro +,MS-H-ProT, MS7-H550-Pro, MS7-H550-S, MS-H280-Pro and MS-H380-Pro |
| 18900084 | PT1000-C | Temperature sensor, length of 100mm, used for digital hotplate models, used for MS-H-Pro +, MS-H-ProT,MS7-H550-Pro, MS7-H550-S, MS-H280-Pro and MS-H380-Pro |
| 18900017 | Support clamp of PT1000 | |
| 18900293 | Set includs support clamp of PT1000 and PT1000 Temperature sensor | |
| 18900018 | F100 | F100 protective cover，for non-hotplate model,use with MS-S |
| 18900019 | F101 | F101 protective cover，for hotplate model,use with MS-H-Pro + and MS-H-S |
