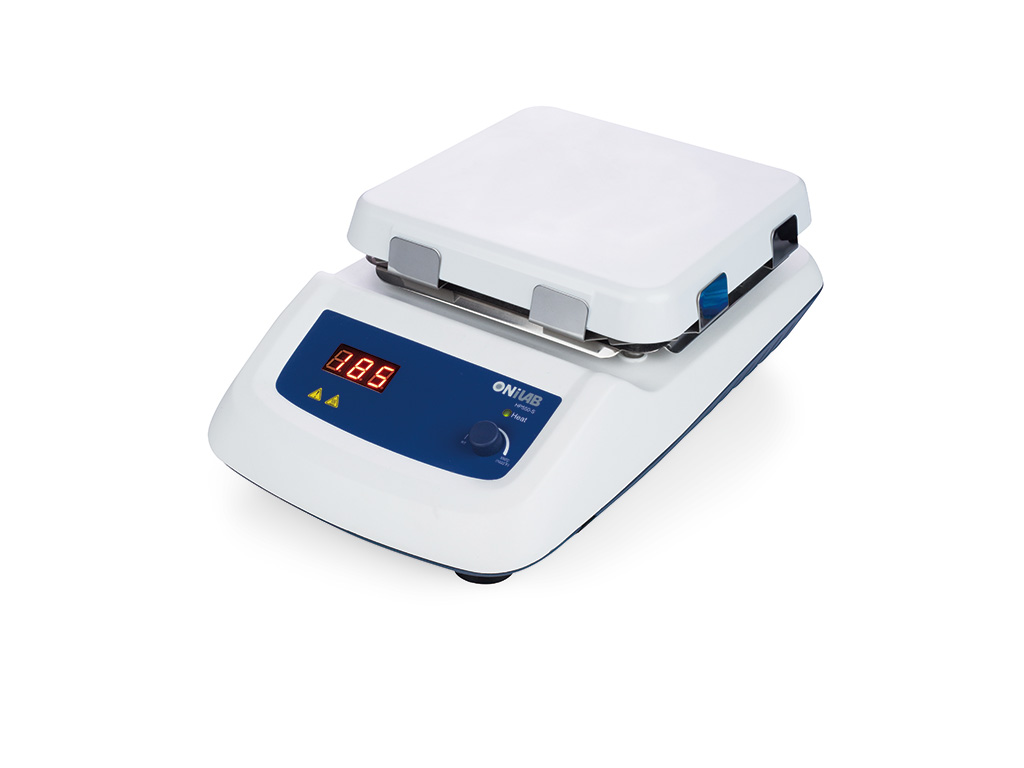

HP550-S
/Hotplates/
Key Features
• LED screen shows temperature
• Max. temperature up to 550°C
• Separate safety circuits with fixed safety temperature of 580°C
• External temperature control is possible by connecting the temperature sensor(PT 1000) with an accuracy at ±0.5°C
• Glass ceramic work plate provides excellent chemical-resistant performance and most efficient heat transfer
• The “HOT” warning will flash if the work plate temperature is above 50°C even when the hotplate is turned off
Parameter
/Hotplates/
| Specifications | HP550-S |
| Work plate Dimension | 184x184mm(7 inch) |
| Work plate material | Glass ceramic |
| Power | 1010W |
| Heating Power | 1000W |
| Voltage | 100-120/200-240V,50/60Hz |
| Heating position | 1 |
| Heating temperature range | Room temp.-550°C,increment 5°C |
| Control accuracy of work plate | ±10°C |
| Safety temperature | 580°C |
| Temperature display | LED |
| Temperature display accuracy | ±1°C |
| External temperature sensor | PT1000(±0.5°C) |
| Heating warning | 50°C |
| Protection class | IP21 |
| Dimension [W x D x H] | 215x360x112mm |
| Weight | 4.5kg |
| Permissible ambient temperature and humidity | 5-40°C, 80%RH |
Number and accessory
/Hotplates/
| Cat. No. | P/N | Descriptions | Power supply |
| 5051122211 | HP550-S | LED Digital 7’’ Square Hotplate，glass ceramic hotplate，heating temperature up to 550°C,with PT1000 for free (18900016),need to buy support clamp 18900017 | USA plug,100V-120V/50Hz/60Hz |
| Cn plug,200V-240V/50Hz/60Hz | |||
| Euro plug,200V-240V/50Hz/60Hz | |||
| UK plug,200V-240V/50Hz/60Hz |
