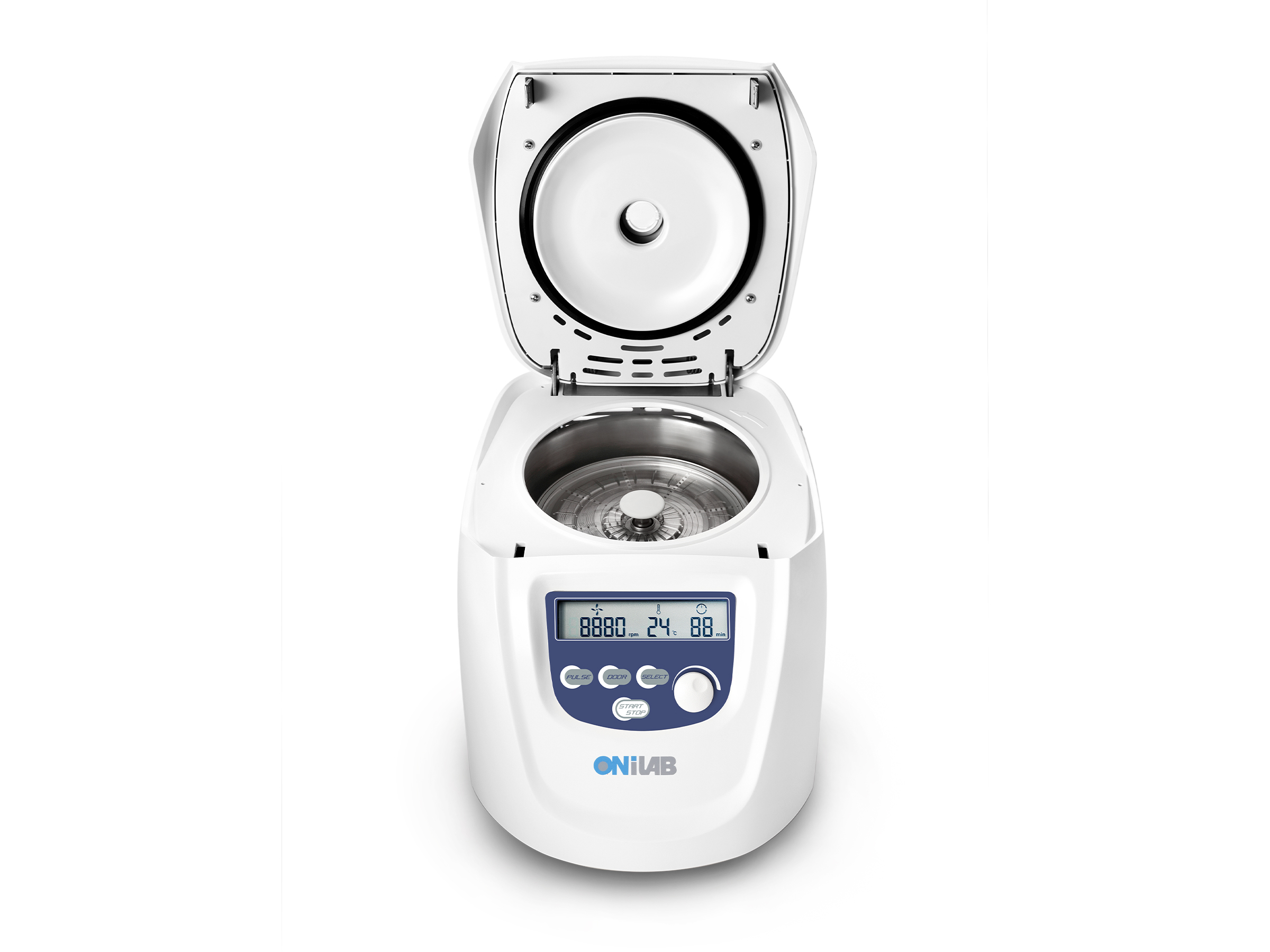

DM1424
/High Speed Micro-Centrifuges/

Key Features

  • Speed range of 200-14000rpm, max. RCF 18620×g
  • Precise control of speed and time separately
  • Easy operation with intuitive menu and easy-to-read display
  • Maintenance-free brushless DC motors
  • Pulse operation for quick spins
  • Rotor capacity: Hematocrit rotor:
  • Hematocrit rotor:24 capillary max. speed:12000rpm
  • Tube rotor: 1.5/2mL×24 max. speed: 14000rpm
Parameter
/High Speed Micro-Centrifuges/
Specifications DM1424
Max. Speed 200-14000rpm,
increment: 10rpm
Max. RCF 18620×g
Speed Accuracy ±20 rpm
Rotor Capacity 2 type
 Time setting range 30sec-99min/Continuous
Motor Brushless DC moto
Display LCD
Safety Mechanism Door interlock,Overspeeddetector;Over-temperature detector, Automatic internal diagnosis, Automatic rotor identification
Power Single-phase,
220V-240V,50Hz/60Hz, 5A;110V-120V,50Hz/60Hz, 5A
500W
Acceleration
/Braking time [Sec]		 30s↑30s↓
Dimension [D×W×H] 280×364×266mm
Weight 10kg
Certification CE cTÜVus FCC MCA
Additional Features Speed/RCF switch; Pulse operation(instantaneous centrifuge);Buzzer notification&alert

Number and accessory
/High Speed Micro-Centrifuges/
Cat. No. P/N Descriptions Power supply
9053001124 DM1424 Hematocrit Centrifuge，with AC24 rotor kit(package contain in the box) US plug, 110-120V/50Hz/60Hz
Cn plug, 220-240V/50Hz/60Hz
Euro plug, 220-240V/50Hz/60Hz
UK plug, 220-240V/50Hz/60Hz

Cat. No. P/N Descriptions
19400046 AC24 Hematocrit rotor kit with a lid and a reading disk, 12000rpm, 24 x capillary tubes, used with DM1424
19400013 A24-2P Plastic rotor kit with lid (Blank LOGO), fixing clips and O'ring, 14000rpm, 2ml/1.5ml*24, used with DM1424
19500001 A02P2 2ml to 0.2ml rotor adapter, used with A12-2, A12-2P, AS24-2 and A24-2P rotors，24pcs/pk
19500002 A05P2 2ml to 0.5ml rotor adapter, used with  A12-2, A12-2P, AS24-2 and A24-2P rotors，24pcs/pk
