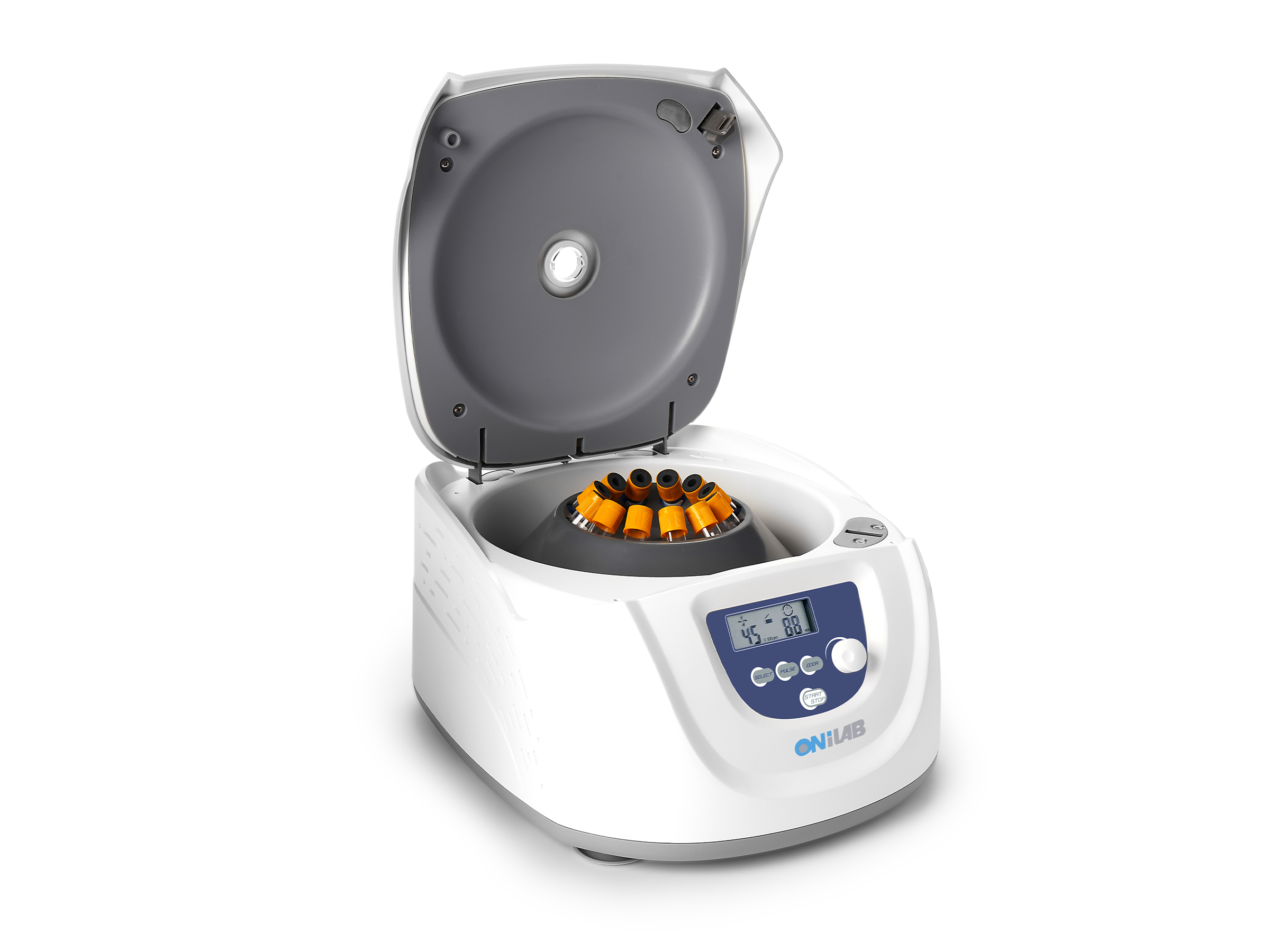

DM0412
/Low Speed Centrifuges/
Key Features
- Easy programming to achieve high accuracy of speed control
- Easy operation with intuitive menu and easy-to-read display
- Rotor speed can be set and displayed by RPM or G-force
- Maintenance-free brushless DC motors
- Quick spin function with press and hold pulse key
- Lid with electric lock and automatic release function saves processing time and prevents samples overheating
- Automatic self-diagnosis on startup showing accumulative running time and last running parameters
- Braking time 2 gears adjustable(for A6-50P rotor)
- A12-10P and A6-50P are not interchangeable
Parameter
/Low Speed Centrifuges/
| Specifications | DM0412 |
| Speed Range | 300-4500rpm,increment: 100rpm |
| Max. RCF | 2490×g |
| Speed accuracy | ±20rpm |
| Rotor type | A12-10P |
| Time setting range |
30sec-99min HOLD(Continuous operation) |
| Motor type | Brushless DC motor |
| Display | LCD |
| Safety Devices | Door interlock,Overspeed detector; Error code runtime display |
|
Acceleration /Braking time |
A12-10P:20s↑13s↓ |
| Power |
Single-phase, 110V-240V,50Hz/60Hz, 3A 70W |
| Dimension [D×W×H] | 301×354×217mm |
| Weight | 6kg |
| Certification | CE, cTÜVus |
| Additional Features | Speed/RCF switch; Pulse operation(instantaneous centrifuge);Buzzer notification&alert |
Number and accessory
/Low Speed Centrifuges/
| Cat. No. | P/N | Descriptions | Power supply |
| 9054002122 | DM0412 | Clinical Centrifuge, including A12-10P rotor and both adapter A10P15&A10P15 plug(package contain in the box) | US plug, 110-240V/50Hz/60Hz |
| Cn plug, 110-240V/50Hz/60Hz | |||
| Euro plug, 110-240V/50Hz/60Hz | |||
| UK plug, 110-240V/50Hz/60Hz |
| Cat. No. | P/N | Descriptions |
| 19400068 | A12-10P | Plastic rotor, 4500rpm, 15ml*8, used with DM0412，DM0412S |
| 19400027 | A10P15 | Rotor adapter, used with A12-10P, 12pcs/pk |
| 19400028 | A10P15 plug | Rotor adapter plug, used with A10P15, 12pcs/pk |
